Description

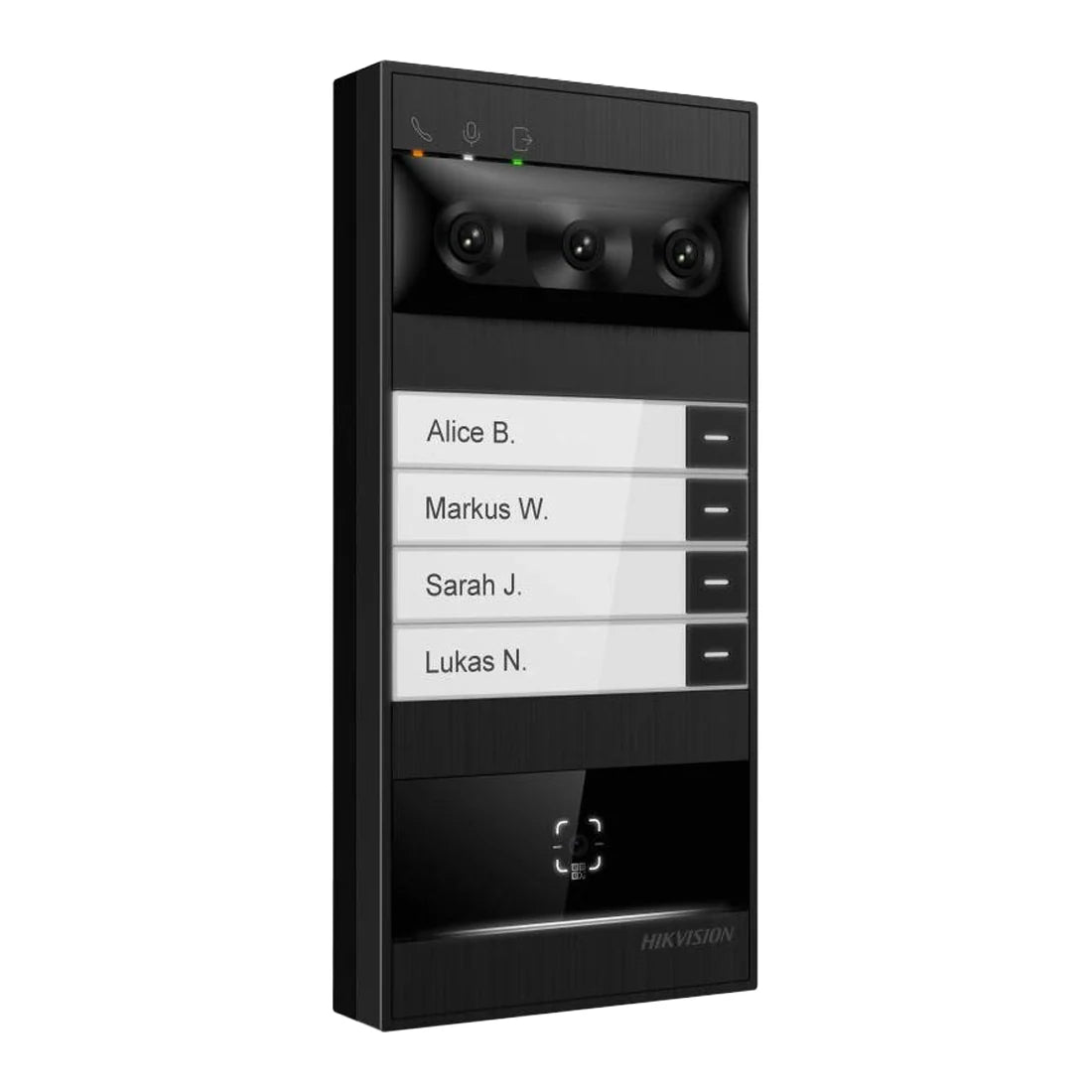

Hikvision DS-KV8114T-NWQE1 4MP + 2MP + 2MP Metal IP Villa Door Station with 180° View, Face Recognition and Wi-Fi 6
The Hikvision DS-KV8114T-NWQE1 is a metal IP villa door station designed for residential video intercom and entrance access control. It features a three-lens camera system, intelligent detection capabilities and multiple authentication methods to support visitor communication and access management.
The camera system combines a 4MP centre lens with two 2MP side lenses. The centre lens provides a 180° horizontal and 105° vertical field of view, while the side lenses provide 75° horizontal and 150° vertical fields of view. The camera supports main-stream resolutions up to 2688 × 1520, 120dB wide dynamic range (WDR) and infrared illumination up to 3 metres.
The door station supports face recognition, M1 and DESFire cards, QR codes, Bluetooth, Hik-Connect and compatible indoor stations or mobile applications. It supports up to 10,000 users, 10,000 faces and 50,000 cards, providing extensive credential capacity for access control applications.
Four built-in omnidirectional microphones and two loudspeakers support audio communication. Noise suppression and echo cancellation help improve audio clarity, while smart noise reduction helps reduce common steady-state and non-steady-state street noise.
Intelligent functions include person and vehicle detection, intrusion detection, line crossing, region entrance and exit detection, fall detection, and sound classification for screaming, glass breaking, crying and gunshot sounds. The unit also supports motion detection, playback, portrait-centred imaging and elevator calling.
For connectivity, the DS-KV8114T-NWQE1 supports 2.4GHz Wi-Fi 6, Bluetooth Low Energy 5.2 and a 10/100Mbps Ethernet connection. It can be powered by 12V DC or IEEE 802.3at PoE. Two lock-control relays allow connection to compatible door locks within the specified electrical ratings.
Designed for outdoor installation, the unit features a metal villa door station housing, IP66 protection and IK08 impact resistance. It supports surface or flush mounting.
Features
- Three-lens camera system: 4MP centre lens and two 2MP side lenses
- Centre lens field of view: 180° horizontal and 105° vertical
- Side lens field of view: 75° horizontal and 150° vertical
- Main-stream resolution up to 2688 × 1520
- 120dB wide dynamic range (WDR)
- AI-ISP image processing
- Infrared illumination up to 3 metres
- H.264, H.265 and MJPEG video compression
- Four built-in omnidirectional microphones and two loudspeakers
- Noise suppression and echo cancellation
- Smart noise reduction level greater than 15dB
- Face recognition, M1/DESFire cards, QR code, Bluetooth and Hik-Connect access
- Capacity for up to 10,000 users, 10,000 faces and 50,000 cards
- 2.4GHz Wi-Fi 6 and Bluetooth Low Energy 5.2
- 10/100Mbps Ethernet interface
- Person and vehicle target detection
- Intrusion, line crossing, region entrance and region exit detection
- Fall-down detection and abnormal sound classification
- Motion detection and playback support
- Two lock-control relays, maximum 30V DC, 1A
- Four alarm inputs, two exit-button inputs and two door-contact inputs
- Supports up to 16 sub door stations
- TF card support up to 128GB
- Call elevator functionality
- Portrait-centred imaging
- 12V DC or IEEE 802.3at PoE power supply
- IP66 protection and IK08 impact resistance
- Surface or flush mounting
|
View Product Datasheet |
