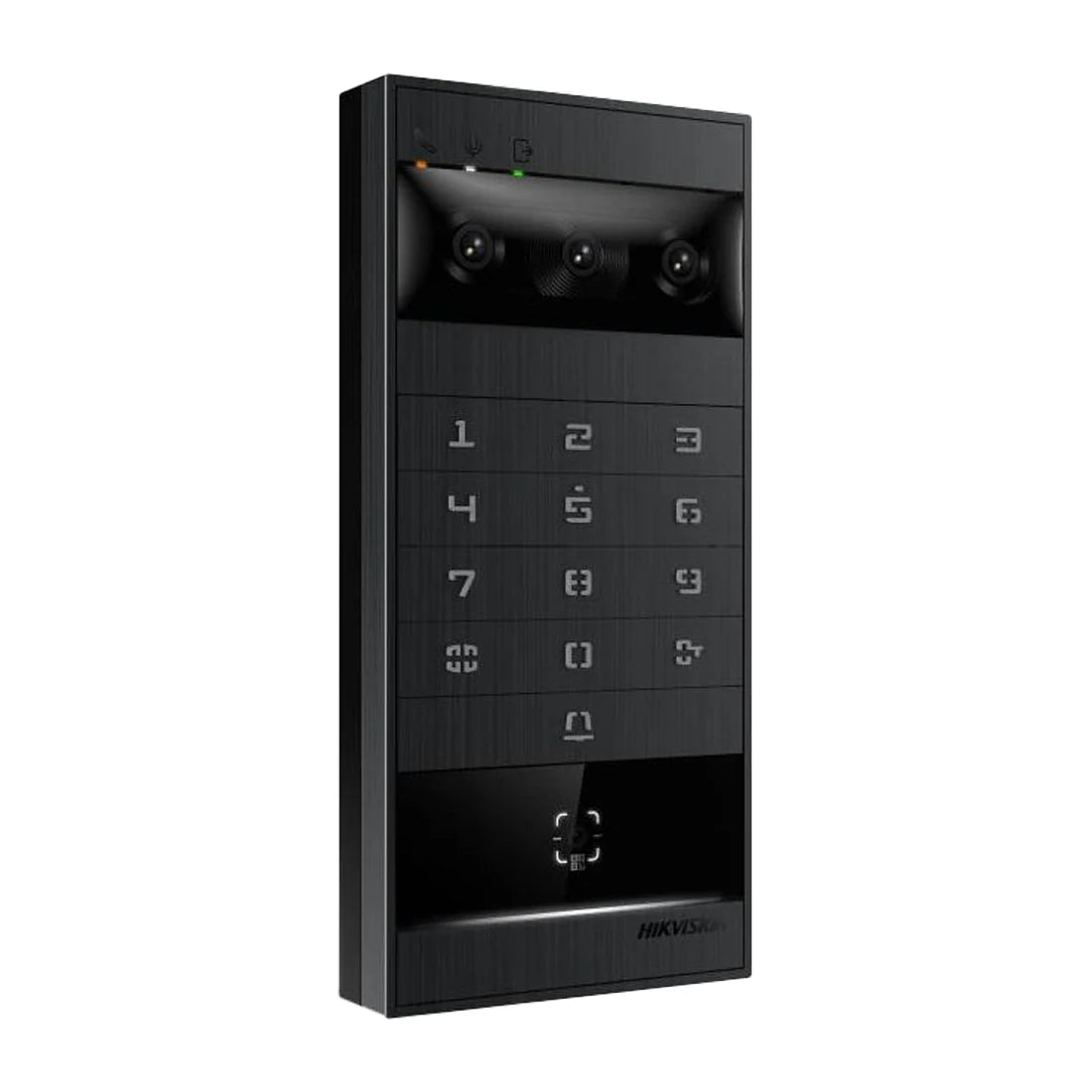

Hikvision DS-KV8114T-KWQE1 4MP + 2MP + 2MP IP Villa Door Station with Triple-Lens 180° View, Face Recognition, Keypad and Wi-Fi 6
The Hikvision DS-KV8114T-KWQE1 is a metal villa door station designed for residential video intercom and entrance access control. Featuring a three-lens camera system, multiple authentication methods and intelligent detection functions, it provides visitor communication and access management in a single outdoor unit.
The camera system combines a 4MP centre lens with two 2MP side lenses. The centre lens provides a horizontal field of view of 180° and a vertical field of view of 105°, while the side lenses provide horizontal and vertical fields of view of 75° and 150°, respectively. The camera supports main-stream resolutions up to 2688 × 1520, 120dB wide dynamic range (WDR) and infrared illumination up to 3 metres.
The DS-KV8114T-KWQE1 supports multiple access methods, including facial recognition, M1 and DESFire cards, PIN codes, QR codes, Bluetooth, Hik-Connect and compatible indoor stations. It supports up to 10,000 users, 10,000 faces and 50,000 cards, making it suitable for installations requiring substantial credential capacity.
Four built-in omnidirectional microphones and two loudspeakers support audio communication. Noise suppression and echo cancellation help improve audio clarity, while smart noise reduction helps reduce common steady-state and non-steady-state street noise.
Intelligent features include person and vehicle detection, intrusion detection, line crossing, region entrance and exit detection, fall detection, and sound classification for screaming, glass breaking, crying and gunshot sounds. The device also supports motion detection, playback, portrait-centred imaging, ambient lighting and elevator calling.
For connectivity, the door station supports 2.4GHz Wi-Fi 6, Bluetooth Low Energy 5.2 and a 10/100Mbps Ethernet connection. It can be powered by 12V DC or IEEE 802.3at PoE. Two lock-control relays support connection to door locks within the specified electrical ratings.
Designed for outdoor installation, the unit has an IP66 protection rating and IK08 impact resistance, excluding the lens and card-reading areas. It supports surface or flush mounting and includes a plastic rear shell, an aluminium-alloy and plastic front shell, an aluminium-alloy frame and a plastic viewing-window panel.
Features
- Three-lens camera system: 4MP centre lens plus two 2MP side lenses
- Centre lens field of view: 180° horizontal and 105° vertical
- Side lens field of view: 75° horizontal and 150° vertical
- Main-stream resolution up to 2688 × 1520
- 120dB wide dynamic range (WDR)
- Built-in infrared illumination up to 3 metres
- H.264, H.265 and MJPEG video compression
- Four built-in omnidirectional microphones and two loudspeakers
- Noise suppression, echo cancellation and smart noise reduction
- Facial recognition, M1/DESFire cards, PIN code, QR code, Bluetooth and Hik-Connect access
- Capacity for up to 10,000 users, 10,000 faces and 50,000 cards
- 2.4GHz Wi-Fi 6 and Bluetooth Low Energy 5.2
- 10/100Mbps Ethernet network interface
- Person and vehicle target detection
- Intrusion, line crossing, region entrance and region exit detection
- Fall-down detection and sound classification detection
- Motion detection and playback support
- Two lock-control relays, maximum 30V DC, 1A
- Four alarm inputs, two exit-button inputs and two door-contact inputs
- Supports up to 16 sub door stations
- TF card support up to 128GB
- Call elevator functionality
- Portrait-centred imaging and ambient lighting
- 12V DC or IEEE 802.3at PoE power supply
- IP66 protection and IK08 impact resistance, excluding the lens and card-reading areas
- Surface or flush mounting
|
