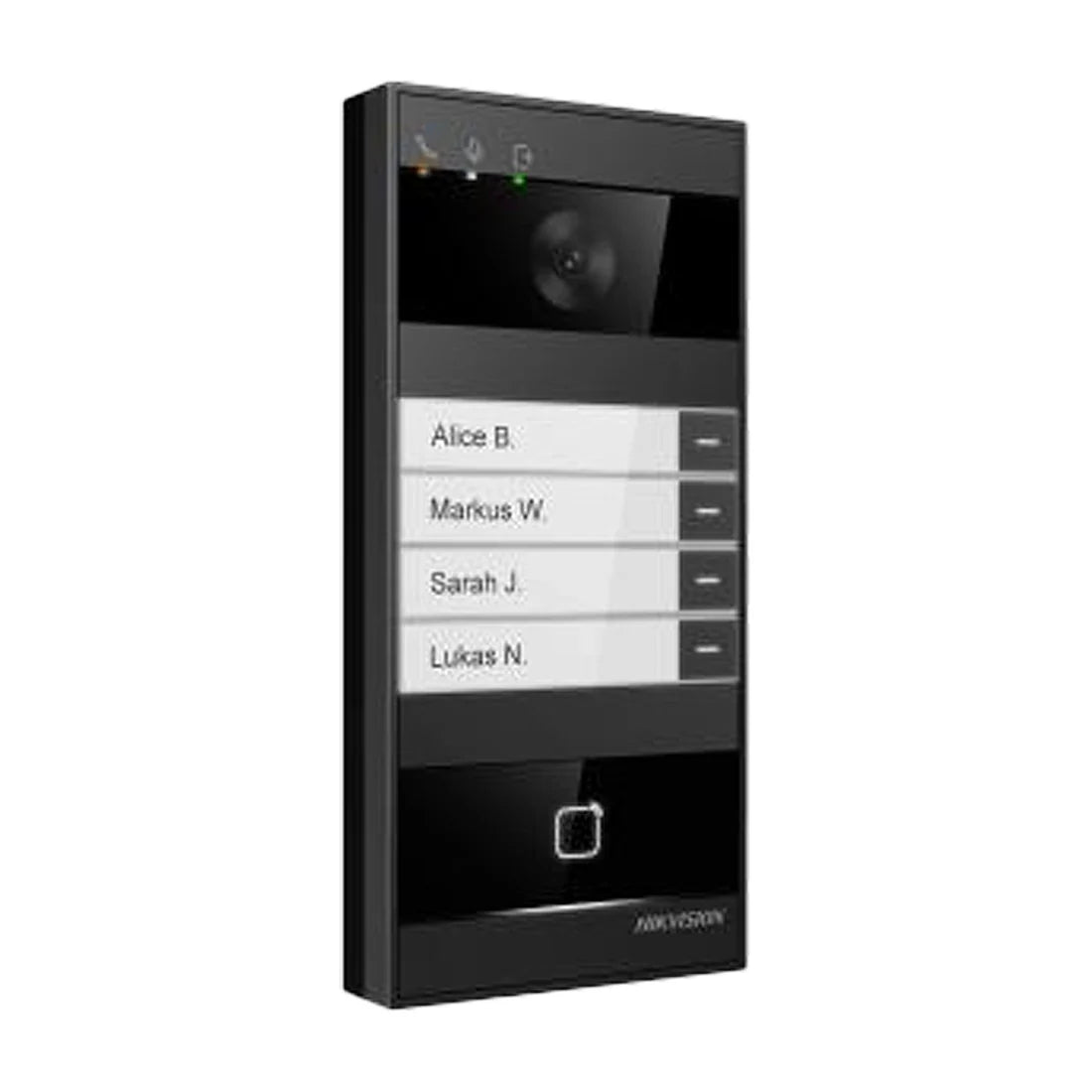

Hikvision DS-KV8114-NWQE1 4MP IP Metal Villa Door Station with Face Recognition, QR Code, Wi-Fi 6 and Dual-Door Control
The Hikvision DS-KV8114-NWQE1 is an IP metal villa door station designed for outdoor video intercom and access control applications. It features a 4MP camera, multiple authentication methods and intelligent detection functions for residential entrance management.
Its single-lens camera supports resolutions up to 2688 × 1520 and provides a 150° horizontal and 105° vertical field of view. With 120dB wide dynamic range (WDR), AI-ISP image processing and built-in infrared illumination up to 3 metres, it is designed to provide clear images in a range of lighting conditions.
The door station supports facial recognition, M1 card, QR code, Bluetooth, Hik-Connect and compatible indoor station access. It supports up to 5,000 users, 5,000 faces and 25,000 cards, offering flexible credential management for residential access control.
Two built-in omnidirectional microphones and two loudspeakers provide audio communication. Noise suppression and echo cancellation help improve audio clarity, while smart noise reduction is designed to reduce common steady-state and non-steady-state street noise.
Intelligent functions include person and vehicle detection, intrusion detection, line crossing, region entrance and exit detection, fall detection, and sound classification for screaming, glass breaking, crying and gunshot sounds. The device also supports motion detection, playback, portrait-centred imaging, ambient lighting and elevator calling.
For network connectivity, the DS-KV8114-NWQE1 supports 2.4GHz Wi-Fi 6, Bluetooth Low Energy 5.2 and a 10/100Mbps Ethernet interface. It can be powered by 12V DC or IEEE 802.3at PoE. Two lock-control relays support connection to compatible door locks within the specified electrical ratings.
Designed for outdoor installation, the Hikvision DS-KV8114-NWQE1 features a metal housing with an IP66 protection rating and IK08 impact resistance. It supports surface or flush mounting, providing flexibility for different entrance installations.
Features
- Single 4MP camera with resolution up to 2688 × 1520
- 150° horizontal and 105° vertical field of view
- AI-ISP image processing
- 120dB wide dynamic range (WDR)
- Built-in infrared illumination up to 3 metres
- H.264, H.265 and MJPEG video compression
- Two built-in omnidirectional microphones and two loudspeakers
- Noise suppression and echo cancellation
- Smart noise reduction with a specified noise reduction level greater than 15dB
- Facial recognition, M1 card, QR code, Bluetooth, Hik-Connect and indoor station access
- Capacity for up to 5,000 users, 5,000 faces and 25,000 cards
- 2.4GHz Wi-Fi 6 and Bluetooth Low Energy 5.2
- 10/100Mbps self-adaptive Ethernet interface
- Person and vehicle target detection
- Intrusion, line crossing, region entrance and region exit detection
- Fall-down detection and abnormal sound classification
- Motion detection and playback support
- Two lock-control relays, maximum 30V DC, 1A
- Four alarm inputs, two exit-button inputs and two door-contact inputs
- Supports up to 16 sub door stations
- TF card support up to 128GB
- Call elevator functionality
- Portrait-centred imaging and ambient lighting
- 12V DC or IEEE 802.3at PoE power supply
- IP66 protection and IK08 impact resistance
- Surface or flush mounting
|
