Description

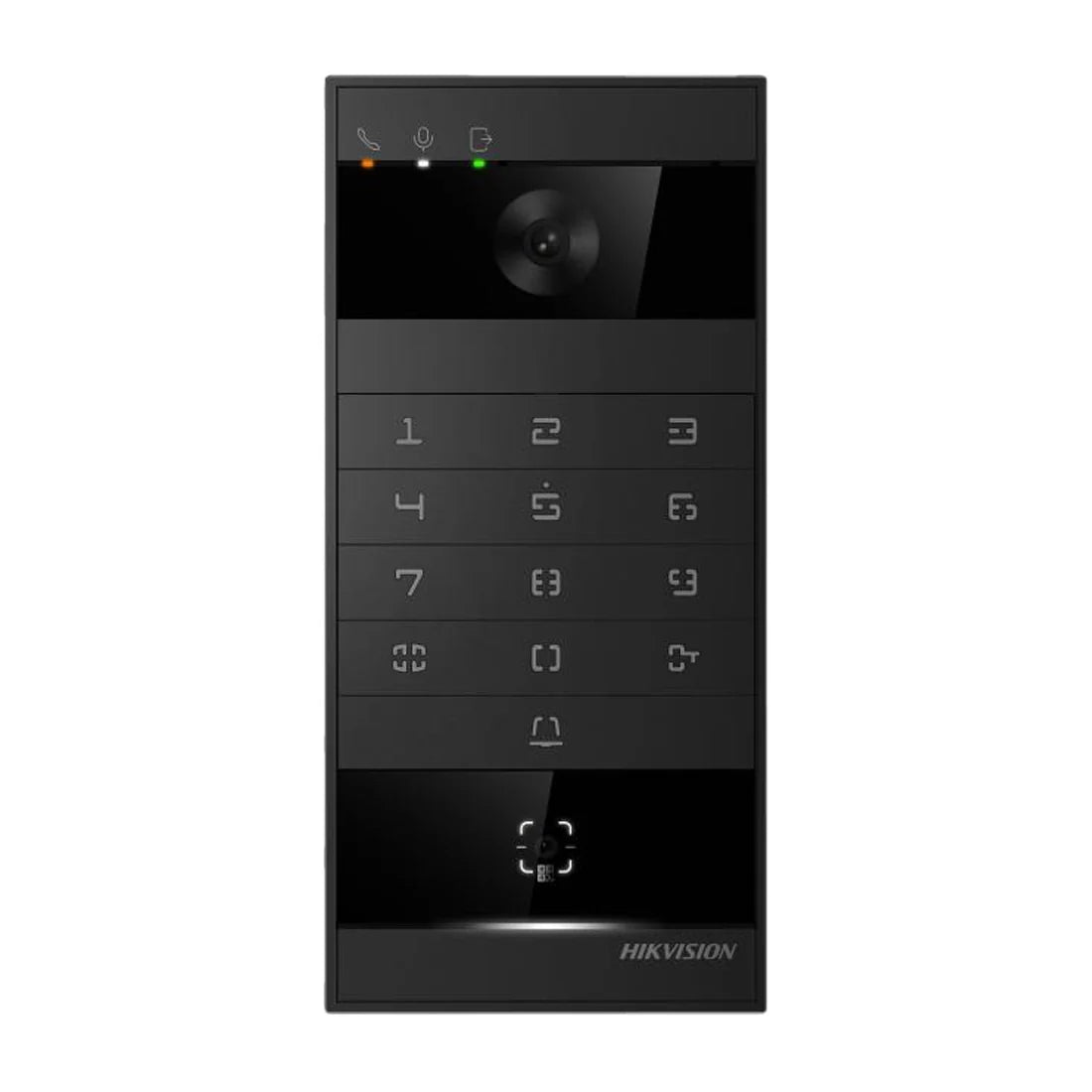

Hikvision DS-KV8114-KWQE1 4MP IP Villa Door Station with Face Recognition, Keypad, Wi-Fi 6, Bluetooth and Dual-Door Control
The Hikvision DS-KV8114-KWQE1 is a 4MP IP villa door station designed to provide secure, convenient visitor communication and entrance access control. Featuring a high-resolution camera, multiple authentication methods and intelligent detection capabilities, it offers a comprehensive solution for residential entrances.
Its 4MP camera delivers images at up to 2688 × 1520 resolution, with a 150° horizontal and 105° vertical field of view to capture a wide area around the entrance. The 120dB wide dynamic range (WDR) helps maintain image clarity in challenging lighting conditions, while built-in infrared illumination provides night-time visibility up to 3 metres.
The door station supports several access methods, including facial recognition, M1 cards, PIN codes, QR codes, Bluetooth and the Hik-Connect mobile app. With a capacity of up to 5,000 users, 5,000 faces and 25,000 cards, it offers flexible credential management for residential access control.
Two built-in omnidirectional microphones and two loudspeakers support two-way audio communication. Noise suppression, echo cancellation and AI-powered noise reduction help improve audio clarity. The device also supports compatible indoor stations and SIP v2 communication.
Intelligent detection features include person and vehicle detection, intrusion detection, line crossing, region entrance and exit detection, fall detection and abnormal sound classification. These features help provide additional awareness around the entrance, subject to the detection conditions and configuration.
For flexible installation, the DS-KV8114-KWQE1 supports 2.4GHz Wi-Fi 6, Bluetooth 5.2 and a 10/100Mbps Ethernet connection. It can be powered by 12V DC or IEEE 802.3at PoE. Two lock-control relays allow control of two doors, subject to the connected locks' electrical requirements.
Designed for outdoor environments, the Hikvision DS-KV8114-KWQE1 features an IP66 protection rating and IK08 impact resistance, subject to the manufacturer's stated exclusions. Its construction includes a plastic rear shell, an aluminium-alloy and plastic front shell, an aluminium-alloy frame and a glass viewing window. Surface or flush mounting options provide flexibility for different entrance installations.
Features
- 4MP camera with up to 2688 × 1520 resolution
- 150° horizontal and 105° vertical field of view
- 120dB wide dynamic range (WDR)
- Built-in infrared illumination up to 3 metres
- Facial recognition, M1 card, PIN code, QR code, Bluetooth and Hik-Connect access
- Capacity for up to 5,000 users, 5,000 faces and 25,000 cards
- Two built-in omnidirectional microphones and two loudspeakers
- Noise suppression, echo cancellation and AI-powered noise reduction
- Wi-Fi 6 on the 2.4GHz band and Bluetooth 5.2
- 10/100Mbps Ethernet network connection
- Person and vehicle detection
- Intrusion, line crossing, region entrance and region exit detection
- Fall detection and abnormal sound classification
- Two lock-control relays for dual-door control
- Four alarm inputs, including exit button and door contact inputs
- Supports up to 16 sub door stations
- TF card storage support up to 128GB
- Supports H.264, H.265 and MJPEG video compression
- Compatible with Hik-Connect and SIP v2
- Call elevator functionality
- Portrait-centred imaging and ambient lighting
- 12V DC or IEEE 802.3at PoE power supply
- IP66 weather protection and IK08 impact resistance, subject to stated exclusions
- Surface or flush mounting
- Aluminium alloy front shell and frame with a glass viewing window
|
View Product Datasheet |
