Description

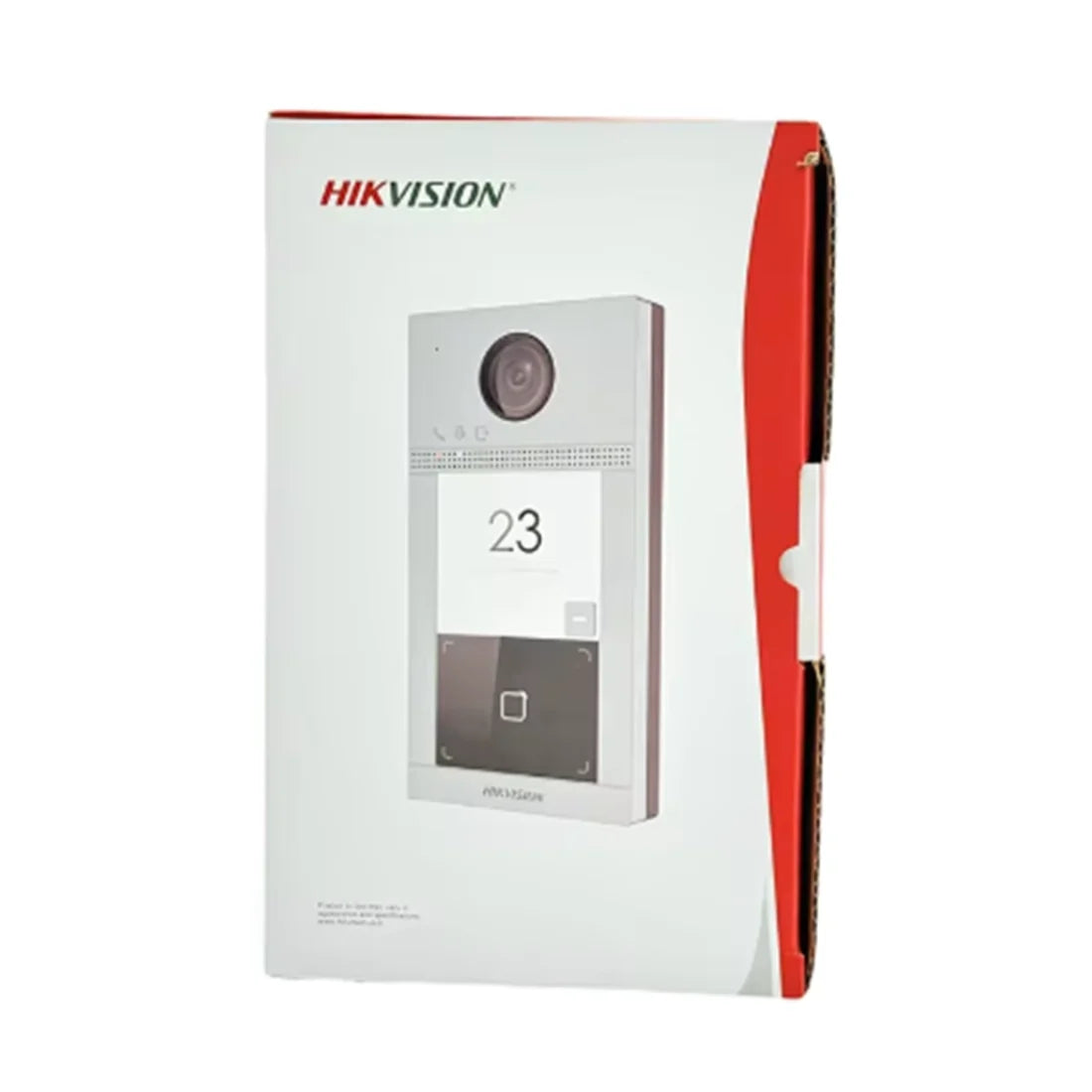

Hikvision DS-KV8113-WME1(C) 2MP Wi-Fi Villa Door Station with PoE MIFARE & IP65
The Hikvision DS-KV8113-WME1(C) is a 2MP IP video intercom villa door station designed for outdoor use in residential villas and detached properties. It features a 2MP camera with IR illumination, a single physical call button with nametag, built-in card reader and Hik-Connect app support.
The door station supports Wi-Fi 802.11b/g/n for convenient network setup, as well as a 10/100 Mbps RJ-45 Ethernet interface. Standard PoE power is supported, helping simplify installation without requiring additional power wiring when PoE is used.
The integrated camera provides a main stream resolution of up to 1920 × 1080p, with a horizontal field of view of 124° and vertical field of view of 75°. IR illumination provides supplementary lighting up to 3 metres, while Digital WDR is supported.
For two-way communication, the DS-KV8113-WME1(C) includes a built-in omnidirectional microphone and loudspeaker, with noise suppression and echo cancellation. Audio uses G.711 U/A compression.
The built-in 13.56 MHz card reader supports up to 10,000 cards, while the system supports up to 2,000 users. The door station can connect to one main indoor station and supports up to 16 sub door stations.
For access control, the unit provides two lock-control relays, each rated up to 30 VDC, 2A, together with two exit-button inputs, two door-contact inputs, four alarm inputs and an RS-485 interface.
The aluminium alloy door station is rated IP65 and IK08, making it suitable for outdoor installation. It operates from -40°C to 53°C and has dimensions of 174 × 91 × 29mm.
Features
- 2 MP camera with IR supplement
- One nametag button calling design for easier calls
- Built-in card reader module
- Standard PoE power supply
- IK08 & IP65 higher protection level with aluminum alloy material
- Convenient Hik-Connect APP mobile control
|
View Product Datasheet |
