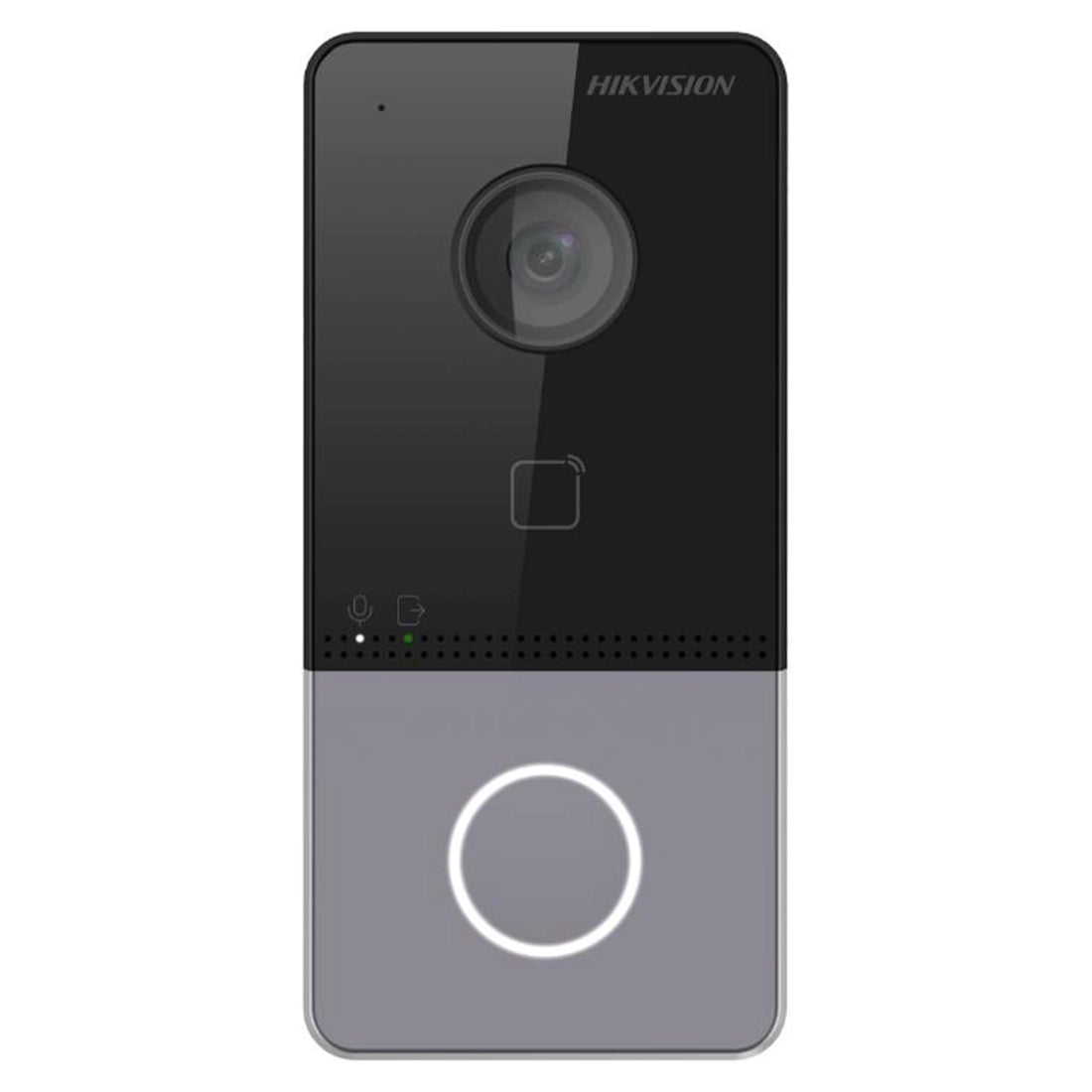

Hikvision DS-KV6113-WPE1(C) Compact Video Intercom Door Station
The Hikvision DS-KV6113-WPE1(C) is a video intercom villa door station that features a 2MP camera with IR supplement and a built-in card reader for easy access.
Access to the property can be granted using the indoor touchscreen or via the client software and mobile app, and configuration can be set up via a web browser.
Alongside the 2MP HD camera, the villa doorbell station features noise suppression and echo cancellation, access control functions, tamper proof, and an IR range up to 3 meters.
Interface
| Number | Description |
|---|---|
| 1 | Microphone |
| 2 | Camera |
| 3 | Indicator |
| 4 | Button |
| 5 | Card Reading Area |
| 6 | Loudspeaker |
| 7 | Terminals |
| 8 | Debugging Port |
| 9 | TAMPER |
| 10 | Set Screw |
| 11 | TF Card Slot (Reserved) |
| 12 | Network Interface |
Features:
- 2 MP camera with IR supplement
- One-touch button calling design for easier calls
- Built-in card reader module
- Standard PoE power supply
- IP65 protection level
- Convenient Hik-Connect APP Mobile Control
|
