Description

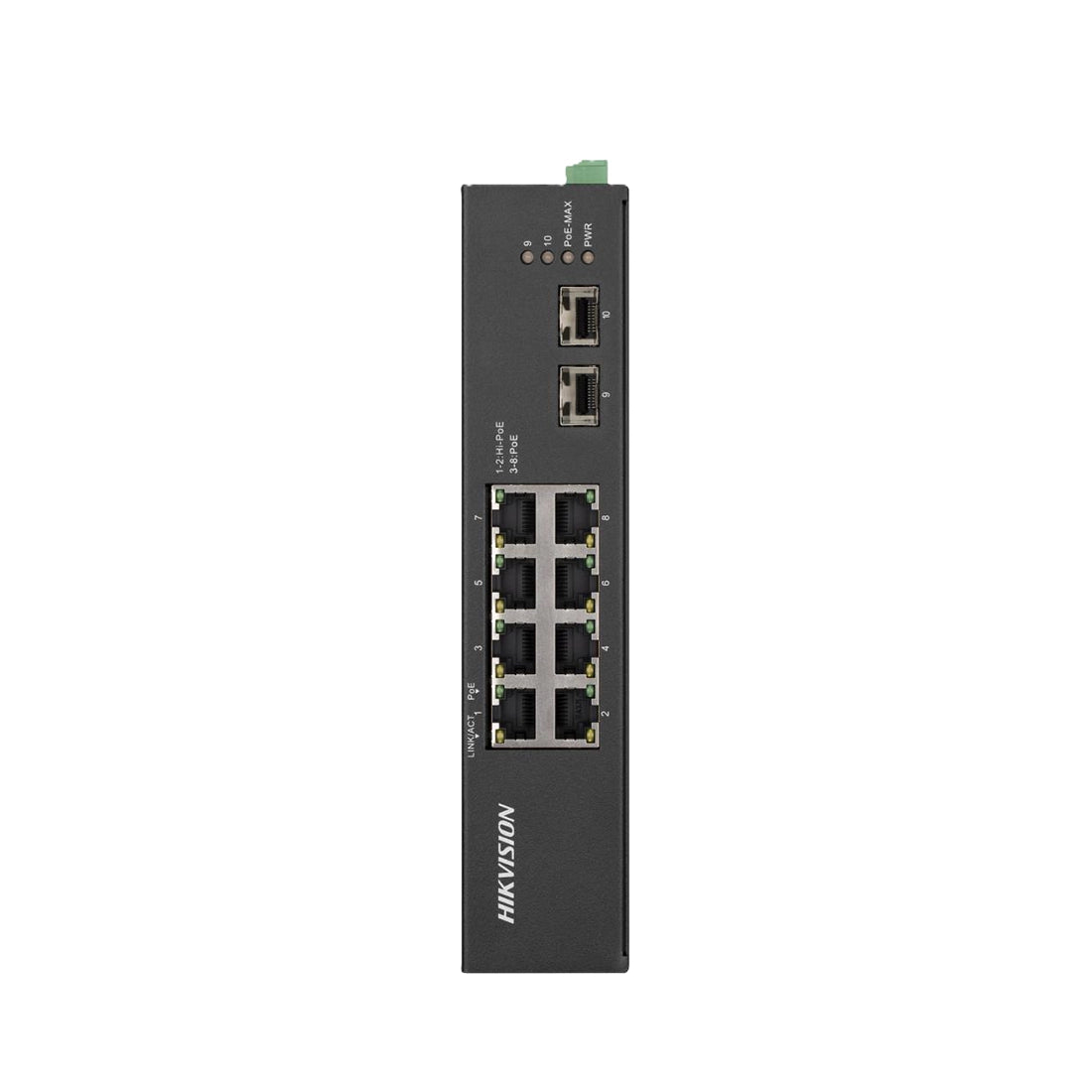

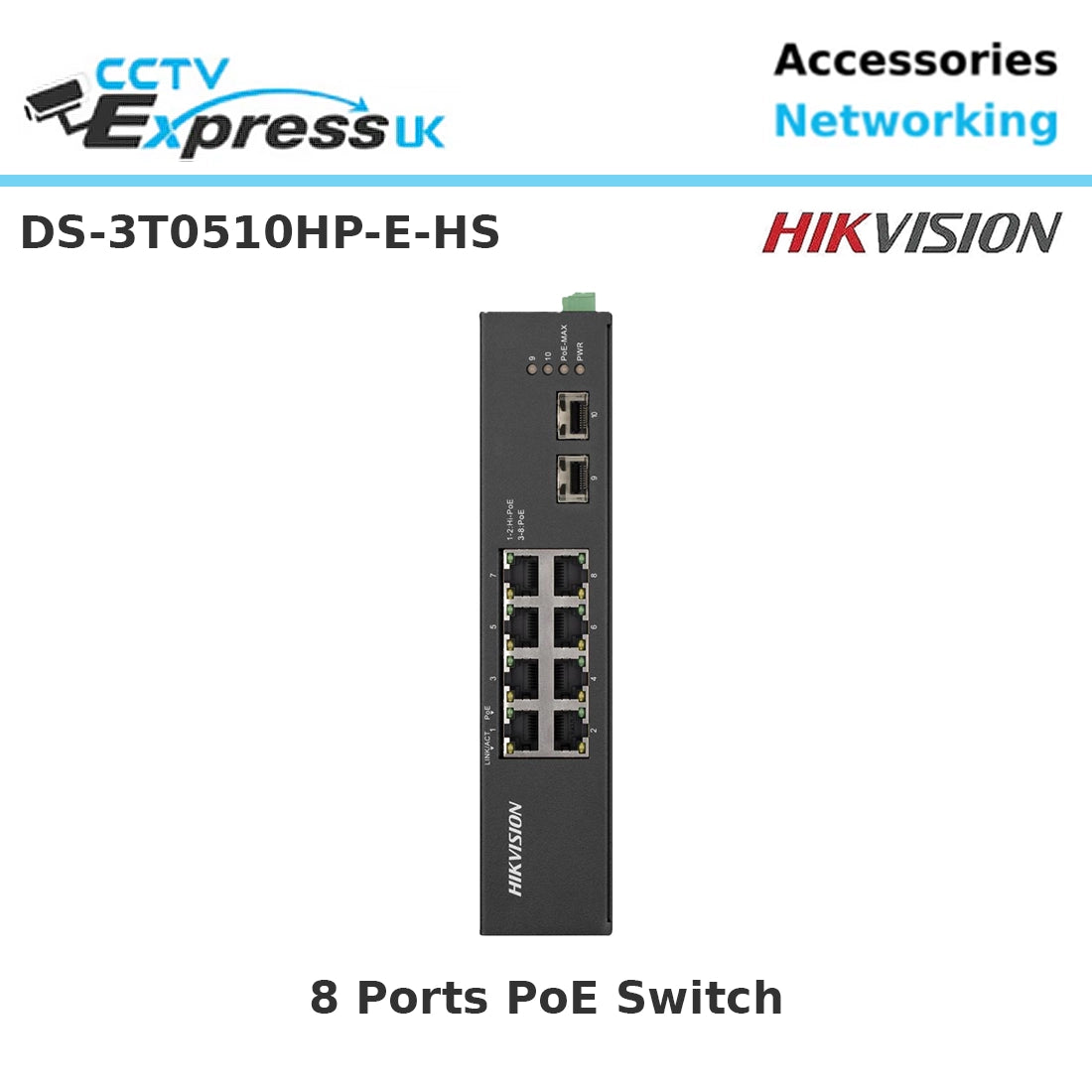

Hikvision DS-3T0510HP-E-HS 8 Port Gigabit Unmanaged Harsh POE Switch
DS-3T0510HP-E-HS 8 Port Gigabit Unmanaged Harsh POE Switch: This robust POE switch features 6 gigabit PoE RJ45 ports, 2 gigabit Hi-PoE RJ45 ports, and 2 gigabit SFP fiber optical ports. It adheres to IEEE 802.3at/af/bt standards with a maximum of 90 W PoE output for Hi-PoE ports and 30 W for standard PoE ports. It supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, and IEEE 802.3ab standards. The switch includes 6 kV surge protection, supports up to 300 m long-range transmission, and features a PoE watchdog for auto-restarting non-responsive cameras. Designed for harsh environments, it operates in temperatures ranging from -30 °C to 65 °C and includes port isolation for enhanced network security. The switch is built with a solid high-strength metal shell and reliable fan-free design.
Features
- 6 × gigabit PoE RJ45 port, 2 × gigabit Hi-PoE RJ45 port and 2 × gigabit SFP fiber optical port.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 90 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 kV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Wire-speed forwarding.
- Wider temperature (-30 °C to 65 °C) design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
|
View Product Datasheet |
