Description

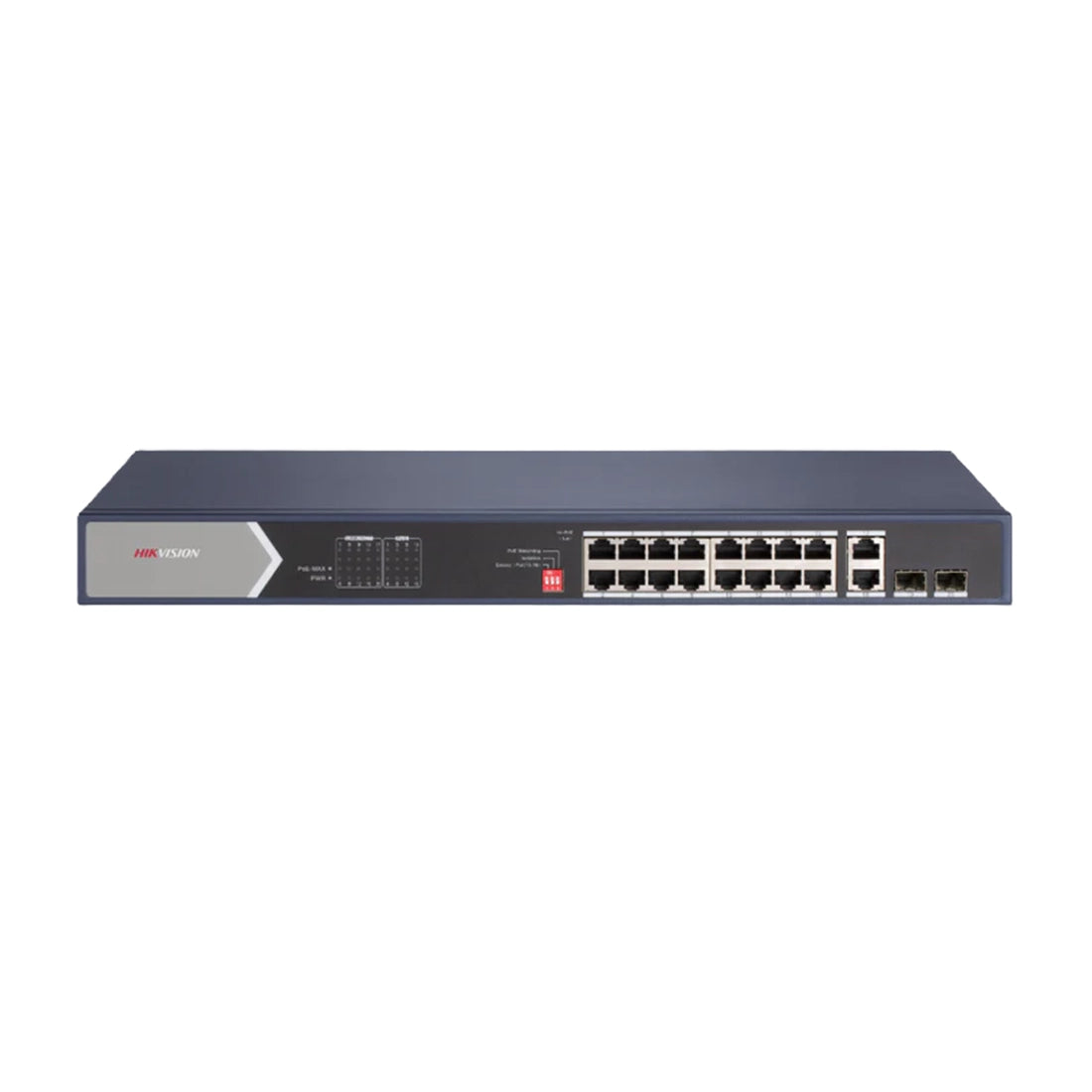

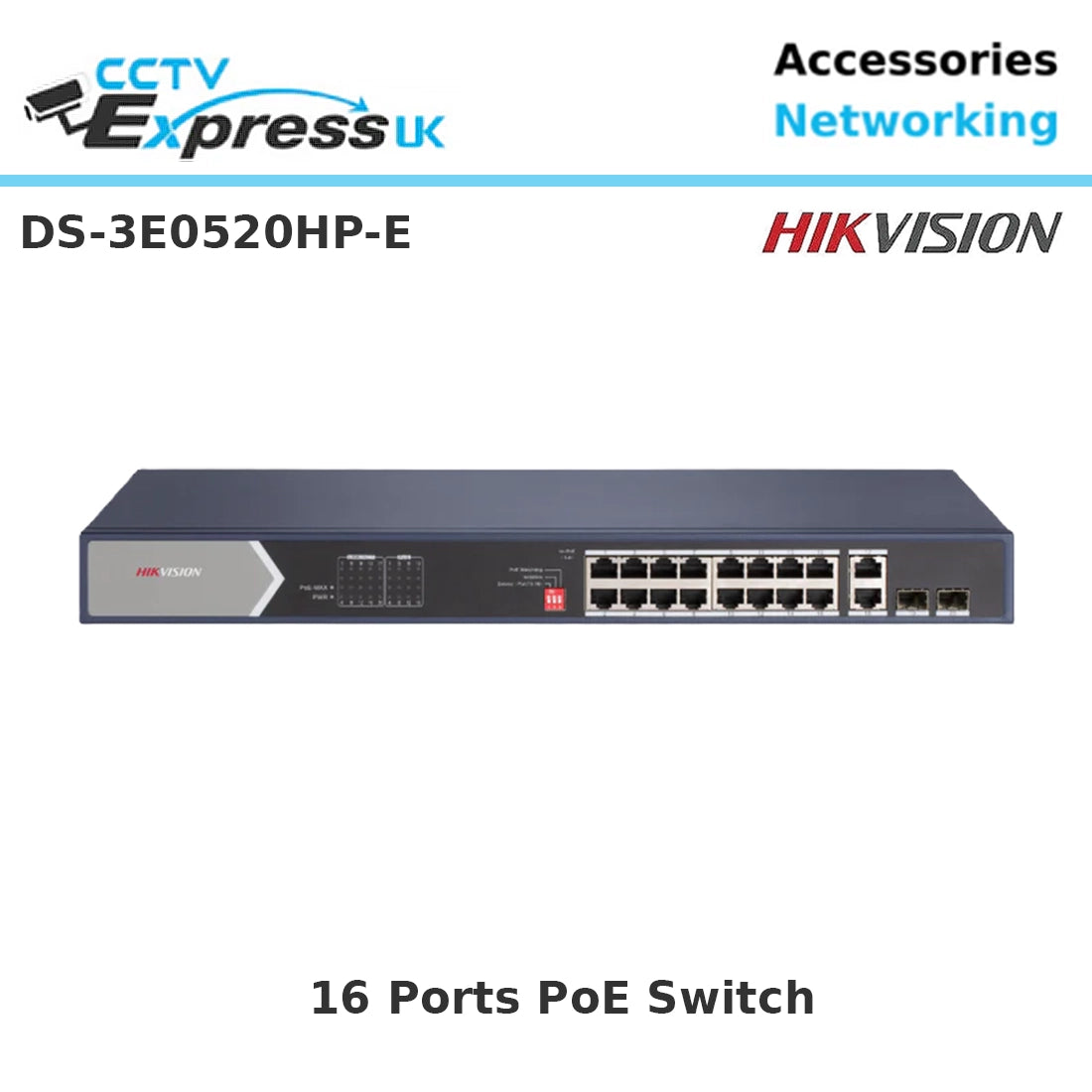

Hikvision DS-3E0520HP-E 16-Port Gigabit PoE+ / PoE 4 Compliant Unmanaged Network Switch
A POE Switch provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. The DS-3E0520HP-E is a 20 port unmanaged PoE switch that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power to all IEEE 802.3af/at compliant devices. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets.
Features:
- PoE power budget 225 W
- 12 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Gigabit network access design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Dimensions: 440 mm × 220.8 mm × 44 mm
|
View Product Datasheet |
