Description

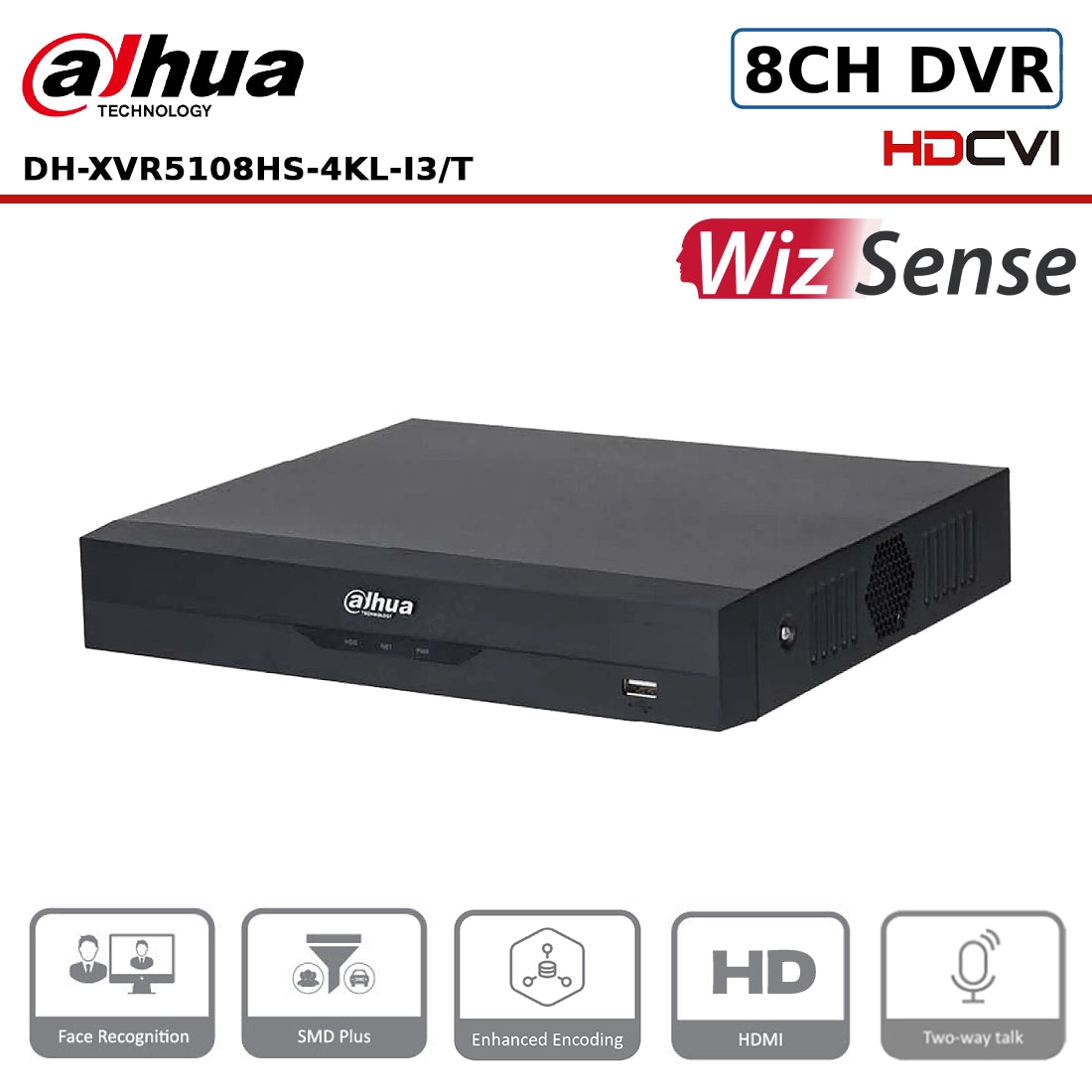

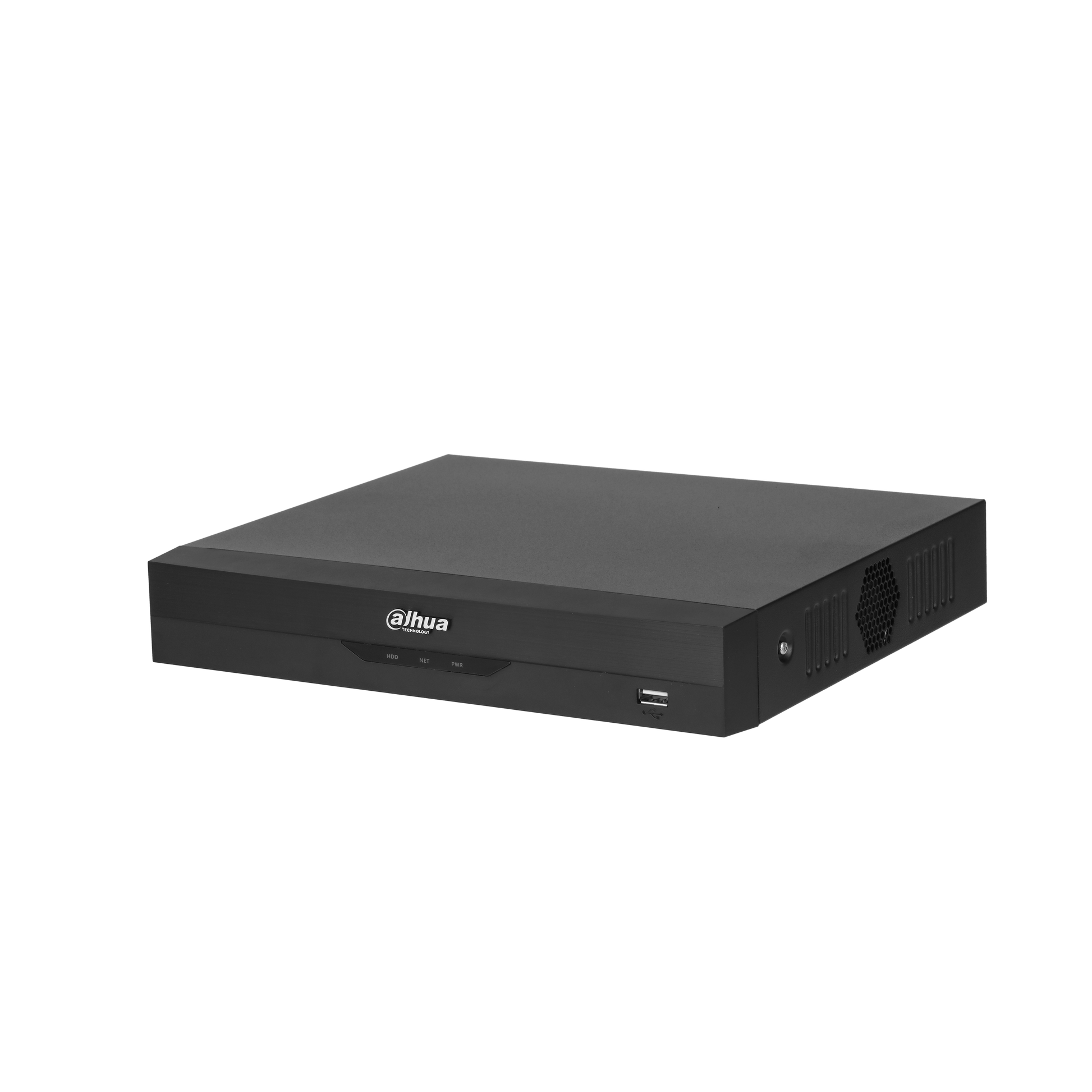

Dahua XVR5108HS-4KL-I3/T 8 Channel Penta-brid 4K Value WizSense Compact 1U Digital Video Recorder with AI Functions and Two-Way Audio
The Dahua XVR5108HS-4KL-I3/T is an 8 channel Penta-brid WizSense digital video recorder that supports HDCVI, AHD, TVI, CVBS and IP camera inputs on a single unit, making it a versatile choice for new builds and analogue upgrades alike. It records analogue channels at up to 4K at 15fps and 5MP at 25fps, and supports up to 16 IP camera inputs at up to 8MP each, with a generous 128 Mbps incoming bandwidth and a 4K HDMI output ensuring the system is built with plenty of headroom.
AI functions are handled at the recorder level across all 8 channels, covering AcuPick for fast person and vehicle search, full-channel SMD Plus to eliminate false alarms from non-human triggers, full-channel Perimeter Protection with tripwire and intrusion detection, 4-channel face recognition backed by up to 10 databases holding 20,000 images, and 8-channel coaxial two-way audio so communication runs over the existing BNC cabling without any additional wiring. Smart H.265+ and AI Coding keep storage and bandwidth demands low, and a single HDD bay supports drives up to 16TB.
Features
- 8 channel analogue input supporting HDCVI, AHD, TVI and CVBS via auto-detection on BNC ports
- Max encoding resolution of 4K at 15fps and 5MP at 25fps on analogue channels
- Up to 16 IP camera inputs supported, up to 8MP per IP channel, max 128 Mbps incoming bandwidth
- AI Functions: 8-ch AcuPick, 4-ch Face Recognition, 8-ch Perimeter Protection with tripwire and intrusion, 1-ch EPTZ, 1-ch Privacy Protection, 8-ch SMD Plus and 8-ch AI Coding
- 8-ch coaxial two-way audio via BNC, plus 1x RCA audio in and 1x RCA audio out
- Smart H.265+, H.265, Smart H.264+ and H.264 compression with full-channel AI Coding
- Face recognition with up to 10 databases and 20,000 face images, plus 6-attribute face detection
- AI Video Quality Analytics across 8 channels detecting brightness, colour cast, defocus and contrast issues
- 1x SATA HDD bay, supports up to 16TB
- 1x HDMI output up to 4K (3840 x 2160) and 1x VGA output up to 1080P, simultaneous display supported
- 1x RJ-45 Gigabit Ethernet port (10/100/1000 Mbps)
- 2x USB ports (1x USB 2.0 front, 1x USB 3.0 rear), 1x RS-485 port
- ONVIF compatible, mobile access via DMSS and DoLynk apps on iOS and Android
- IoT and POS functionality supported
- 12VDC 2A power supply, compact 1U desktop form factor
- Operating temperature: minus 10 to plus 55 degrees C
|
View Product Datasheet |
