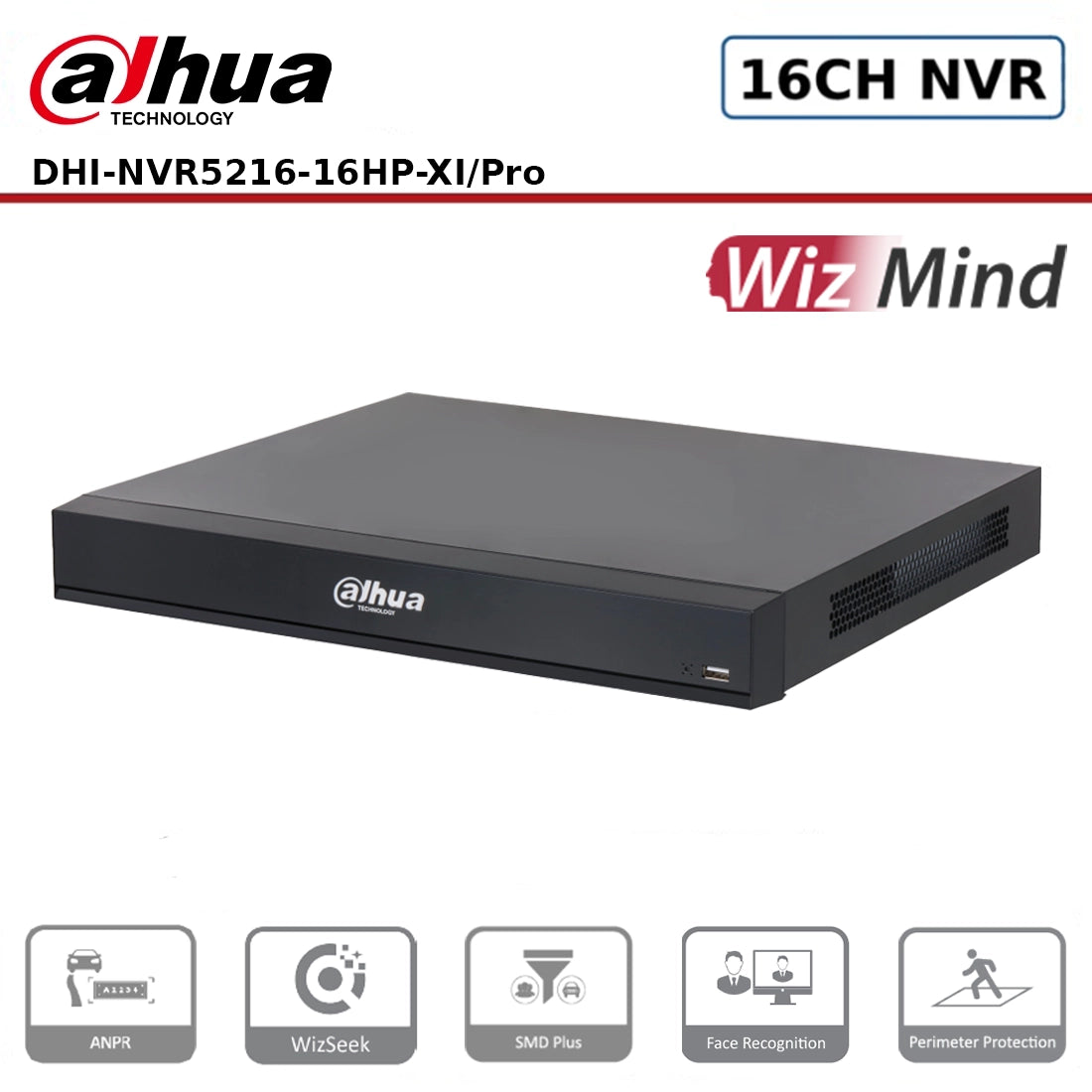

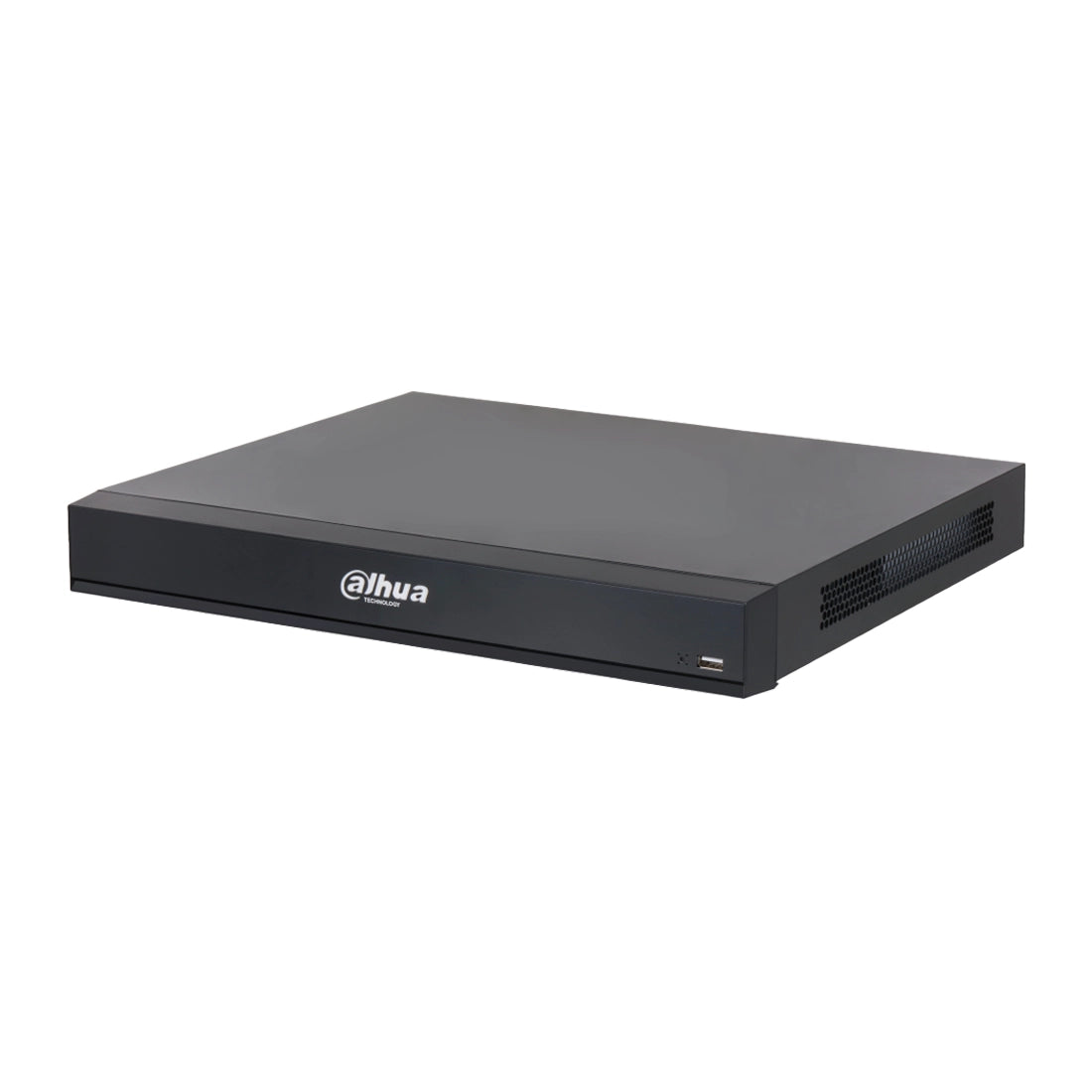

Dahua DHI-NVR5216-16HP-XI/Pro 16 Channel 16PoE 2HDD WizMind AI NVR with 8K Output, AcuPick and WizSeek
The Dahua DHI-NVR5216-16HP-XI/Pro is a 16-channel WizMind network video recorder designed for professional and commercial installations that demand serious AI capability across a larger camera count. It supports cameras up to 32MP, handles up to 512Mbps incoming bandwidth, and delivers 8K HDMI output for ultra-high-definition local monitoring. The WizMind platform brings WizSeek natural-language video search powered by Dahua's Xinghan AI model, allowing users to describe a target in plain text and retrieve matching footage instantly, alongside AcuPick, 8-channel face detection and recognition, perimeter protection, video metadata, ANPR, people counting and PPE detection. The integrated 16-port ePoE switch powers cameras directly through the recorder with a 240W total PoE budget, and dual SATA bays support drives up to 20TB each for extended retention.
Features
- 16-channel WizMind NVR, Dahua's top-tier AI platform
- WizSeek natural-language video search powered by Xinghan large-scale AI model
- AcuPick intelligent search for human and vehicle targets, supported by recorder and camera
- 8-channel face detection and recognition, up to 20 face databases and 200,000 stored images
- 16-channel perimeter protection and SMD Plus
- Video metadata extraction covering humans, motor vehicles and non-motor vehicles
- ANPR by camera, people counting, crowd distribution, heat map and PPE detection
- Text-Defined Alarming, trigger alerts using natural language descriptions
- Supports IP cameras up to 32MP resolution
- 8K HDMI output (7680x4320) plus VGA, heterogeneous dual-display support
- Up to 512/512/384Mbps incoming, recording and outgoing bandwidth
- Max decoding: 40 x 1080p@30fps (AI disabled)
- 16-port ePoE switch, 240W total PoE budget, 802.3af/at compliant
- Dual SATA HDD bays, up to 20TB per drive
- iSCSI and N+M cluster support for scalable or redundant deployments
- 1 x Gigabit RJ45 network port
- ONVIF compliant with third-party camera compatibility including Axis, Hanwha, Sony and Pelco
- 4 alarm inputs, 2 alarm outputs, RS-485 and RS-232
- Remote access via DMSS app on iOS and Android
- NVR NEXT GUI interface
|
