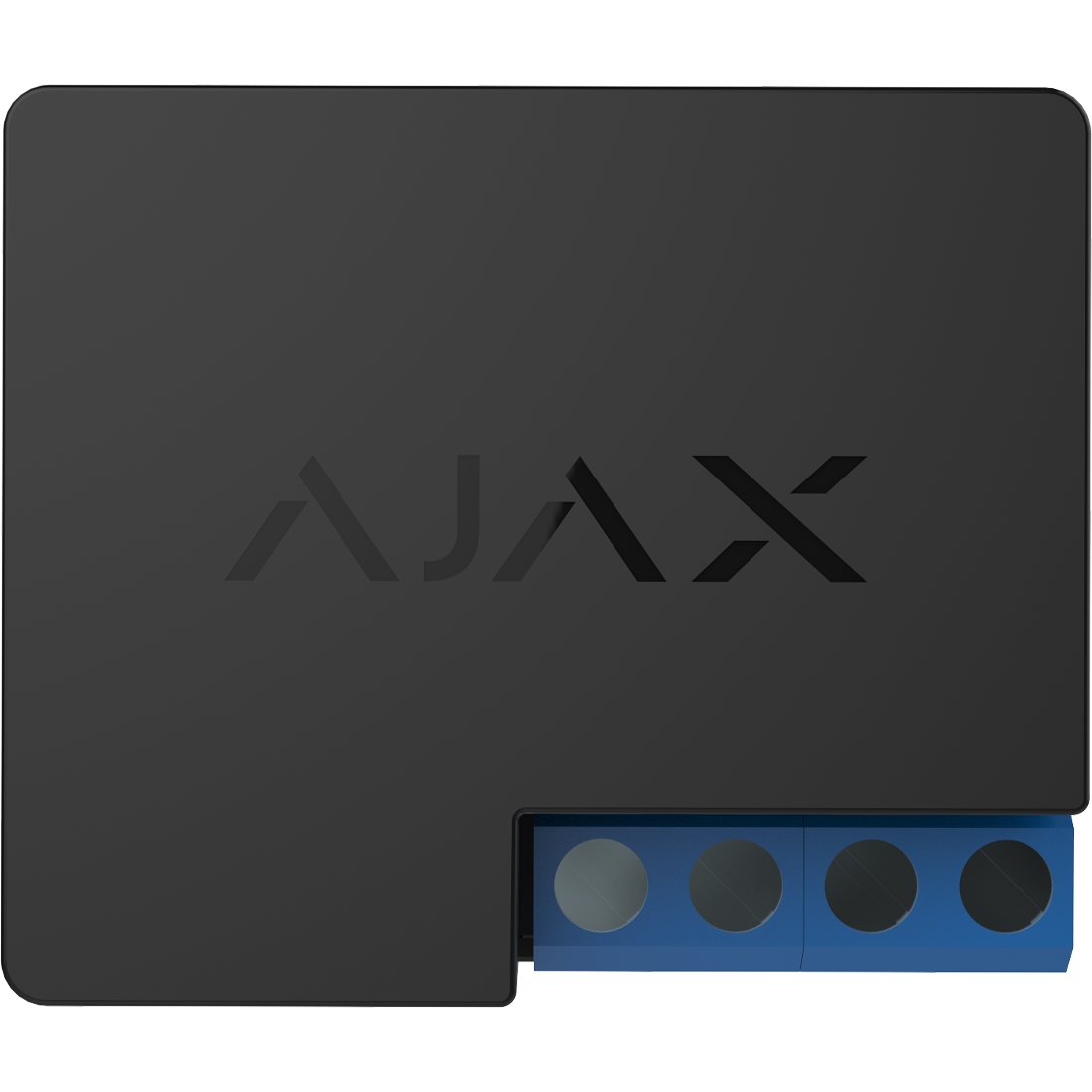

Ajax AJAX-7649 / 38189 WallSwitch Wireless Mains Relay

Description

Ajax AJAX-7649 / 38189 WallSwitch Wireless Mains Relay

Ajax responds only to real threats, not false alarms, and alerts you instantly when an event occurs.

Designed and built from the ground up, Ajax combines functional design, cutting-edge technology, and premium components. This no-compromise approach creates a user-friendly security system offering top-level reliability and performance for security professionals.

WallSwitch: Remote Control for Household Appliances
WallSwitch is a wireless radio channel controller that enables remote control of home appliances. It can switch devices like irons, lights, garage doors, water heaters, and heated floors on or off.

The device manages electric power through a relay that opens and closes the power supply circuit. WallSwitch supports both 110 V and 220 V mains and features a real-time power consumption meter for monitoring energy use.

Features

·       Wireless radio channel relay

·       Operates only with Hub, Hub Plus and ReX

·       Maximum current protection: 13 A

·       Resistive load at 230 V — up to 3 kW

·       Resistive load at 110 V — up to 1.5 kW

·       Electric power meter function

·       Energy consumption parameter check

·       Power supply: 110−230 V±10% 50/60 Hz

·       Jeweller radio technology

·       Communication range with central unit - up to 1,000 m in an open space

·       Two-way communication between devices

·       Operating frequencies - 868.0-868.6 MHz

·       Operating temperature range: 0°С to +64°С

·       Permissible humidity: up to 75%

·       Anti-sabotage

·       Jamming detection

·       Protection class of body: IP20

·       Remote setting and testing

·       Dimensions: 39 х 33 х 18 mm

·       Wireless radio channel relay

·       Resistive load at 230 V - up to 3 kW

·       Communication range with central unit - up to 1,000 m in an open space
