Ajax-56211 Transmitter Wired to Wireless Detector Converter

Description

Ajax-56211 Transmitter Wired to Wireless Detector Converter

Ajax responds only to real threats, not false alarms, and notifies you immediately when an event occurs.

Built from the ground up using functional design, the latest technology, and premium components, Ajax delivers a user-friendly security system with top-level reliability and performance for security professionals.

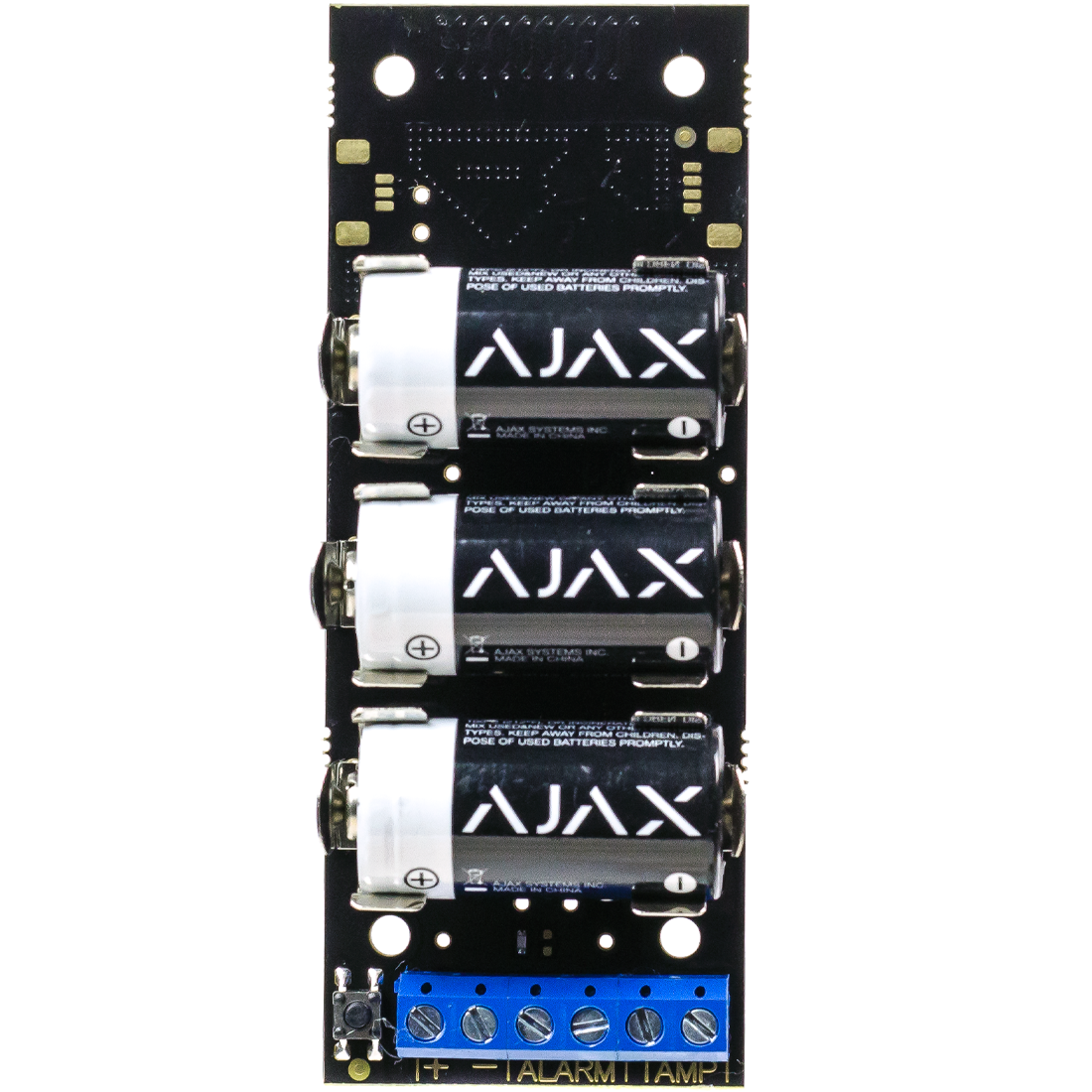

Wireless Module: Connecting Wired Detectors to Ajax
This wireless module enables integration of wired motion detectors, IR barriers, liquid level sensors, gas detectors, thermal relays, and other third-party devices with wired outputs into the Ajax security system. It receives activation signals from connected detectors via wired inputs and sends alarms directly to the hub.

Equipped with an accelerometer, the module detects tampering or removal and triggers an alarm if the connected detector is opened.

Features:

·       Module for third-party detector integration

·       Operates only with Hub, Hub Plus, Hub2, Hub2 Plus and ReX

·       Alarm input: 1

·       Tamper input: 1

·       Power supply current: terminals +/−

·       Power supply output: 3.3V

·       Battery charge indication: Yes

·       Battery life - up to 5 years

·       Jeweller radio technology

·       Communication range with central unit - up to 1,600 m in an open space

·       Two-way communication between devices

·       Operating frequencies - 868.0—868.6 MHz

·       Operating temperature range: -25°С to +50°С

·       Permissible humidity: up to 75%

·       Anti-sabotage

·       Jamming detection

·       Accelerometer to detect removal

·       Dimensions: 100x39x22 mm

·       Module for third-party detector integration

·       Battery life - up to 5 years

·       Communication range with central unit - up to 1,600 m in an open space

*Battery: 3x CR123A Lithium battery (included)*
