Description

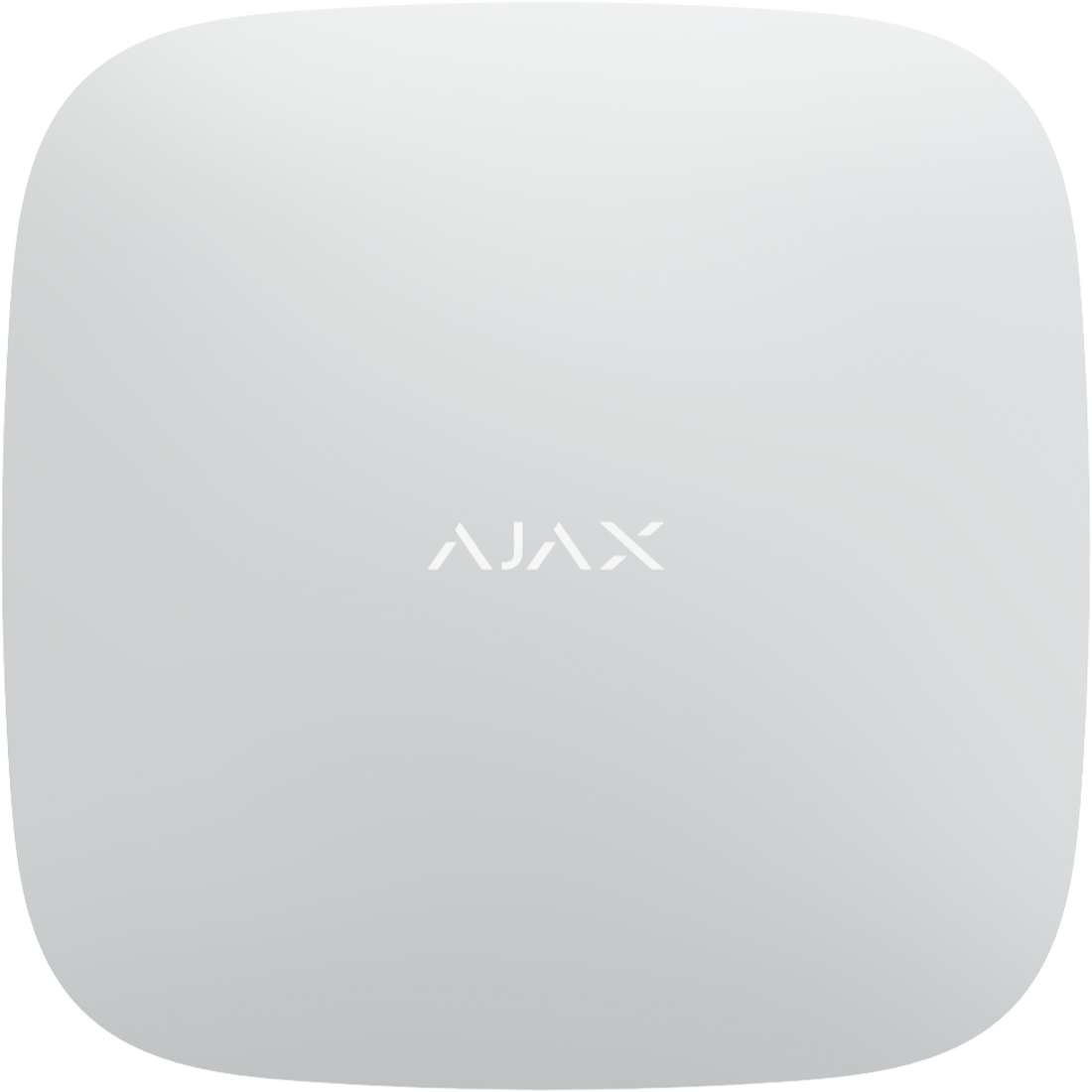

AJAX-34719 Rex2 Detector and Camera Range Repeater - White
Ajax is smart, reliable, and lightning fast. It reacts to real dangers only, not to false alarms. If an event occurs, Ajax will notify you in a heartbeat. Ajax has been designed and built from scratch by combining functional design, the latest technology and the best components available. This uncompromising approach made it possible to create a user friendly security system that provides top level reliability and functionality to security professionals.
The Ajax ReX 2 is a radio signal range extender that significantly expands your Ajax security system's coverage. It allows devices to be placed further from your Hub 2 or Hub 2 Plus, effectively doubling the signal range and extending the system's reach up to 35 km². This extender works with MotionCam and MotionCam Outdoor detectors. Upon activation, these detectors capture a series of images, providing visual verification of events. This helps users quickly assess situations and reduces unnecessary security dispatches.
For robust communication, ReX 2 features four antennas and supports both Jeweller and Wings radio protocols. Jeweller handles immediate command and alarm transmission, while Wings ensures efficient image delivery. Ajax's two-way communication employs session synchronization, anti-fraud authentication, and data encryption for secure operation.
Features:
- Classification: Radio channel range extender
- Device type: Wireless
- Installation method: Indoors
- Compatibility: Hub 2 and Hub 2 Plus with OS Malevich version 2.12 and higher
- Alarm signal delivery time: 0.3 seconds
- Maximum connected devices (in a system with one range extender): Hub 2 — up to 99, Hub 2 Plus — up to 199
- Number of range extenders connected to the hub: 5
- Operating system: OS Malevich
- Power supply: 110−240 VAC or 12 V from 12V PSU for Hub 2/Hub 2 Plus/ReX 2
- Built-in backup battery Li-Ion 2 Ah: Up to 38 hours of backup battery life
- Jeweller radio protocol: Communication range with the hub — up to 1,700 m in open space, Communication range with detectors — up to 1,700 m in open space, depending on the detector model
- Two-sided communication between devices
- Operating frequencies — 868.0–868.6 MHz
- Auto-regulated radio signal power: ≤ 25 mW
- Blocking encryption based on the AES algorithm
- Detector ping interval — 12–300 seconds
- Frequency hopping
- Operating temperature range: From −10°C to +40°C
- Operating humidity: Up to 75%
- Anti-sabotage: Fraud protection
- Jamming notification
- Tamper-resistant
- Dimensions: 163 × 163 × 36 mm
- Weight: 330 g
- Radio channel range extender
- For indoor use
- Maximum connected devices: Hub2 - up to 99, Hub2 Plus - up to 199
*Battery backup: Li-Ion 2 Ah (included)*
|
View Product Datasheet |
