Description

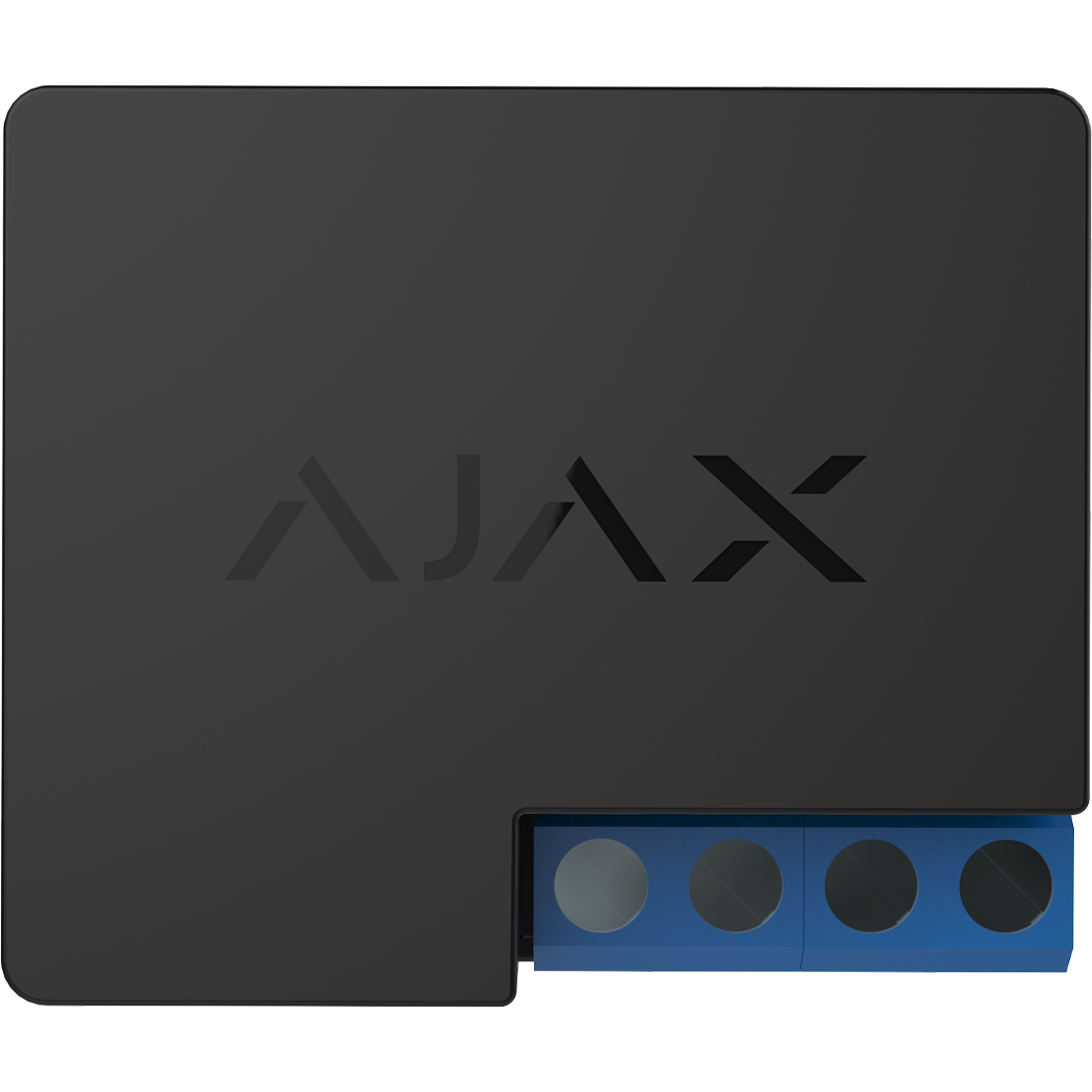

AJAX-11035 / 38204 Relay Wireless Low Voltage Relay
Ajax is smart, reliable, and lightning fast. It reacts to real dangers only, not to false alarms. If an event occurs, Ajax will notify you in a heartbeat. Ajax has been designed and built from scratch by combining functional design, the latest technology and the best components available. This uncompromising approach made it possible to create a user friendly security system that provides top level reliability and functionality to security professionals.
Relay is a wireless controller that enables remote management of household or office electrical appliances. It can switch electric locks, gates, roller shutters, blinds, and even restart devices like modems or routers. The device works by opening or closing a dry contact relay and is powered by a 7–24 V DC source. The dry contact operates independently and is not galvanically connected to the relay’s internal circuitry.
Features
- Wireless radio channel relay
- Operates only with Hub, Hub Plus and ReX
- Power supply: Max — 36.5 V, min - 6.5 V
- Jeweller radio technology
- Communication range with central unit - up to 1,000 m in an open space
- Two-way communication between devices
- Operating frequencies - 868.0-868.6 MHz
- Operating temperature range: 0°С to +64°С
- Permissible humidity: up to 75%
- Anti-sabotage
- Jamming detection
- Protection class of body: IP20
- Remote setting and testing
- Dimensions: 39 х 33 х 18 mm
- Wireless radio channel relay
- Power supply: Max - 36.5 V, min - 6.5 V
- Communication range with central unit - up to 1,000 m in an open space
|
