Description

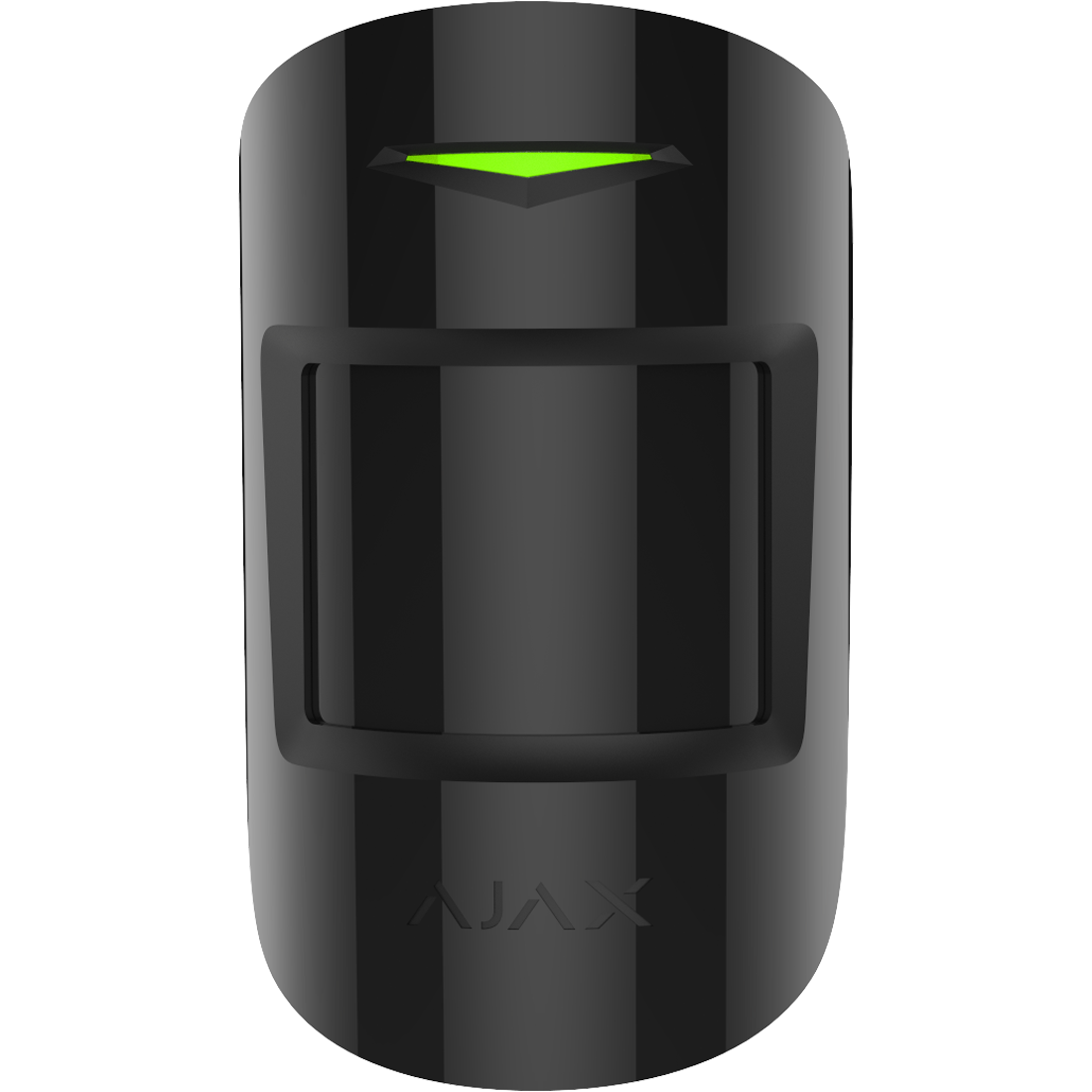

AJAX-22944 MotionProtect Plus Pet Tolerant Dual Tech Wireless PIR - Black
MotionProtect Plus Jeweller is a wireless IR motion detector featuring a dual detection technology comprising PIR and microwave sensors. The microwave sensor is activated solely to confirm the detection triggered by the PIR motion sensor, ensuring precise detection even in areas with significant thermal interference, like those with active air conditioners or fireplaces. With a sleek design, detectors are seamlessly integrated into any space. Installation is simplified with wireless capabilities and the SmartBracket mounting panel, while remote configuration eliminates the need for on-site visits to resolve minor requests.
Features
- Electro-optical combined radio channel security detector
- Wireless
- Operates with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge
- Dual Tech Microwave PIR sensor
- Alarm signal delivery time: 0.15 s
- Motion detection distance: Up to 12 m
- Detection angles: Horizontal-88.5°, Vertical-80°
- Sensitivity adjustable: 3 levels
- Recommended installation height 2.4 m
- Pet immunity: Weight: up to 20 kg, Height - up to 50 cm
- Battery life: up to 5 years
- Jeweller radio technology
- Communication range with central unit up to 1,700 m in an open space
- Two-way communication between devices
- Operating frequencies: 868.0 - 868.6 MHz
- Self-adjusting RF output power: up to 20 mW
- Block encryption based on AES algorithm
- Device polling period: 12-300 s
- Operating temperature range from +5°С to +40°С
- Permissible humidity up to 75%
- Anti sabotage
- Jamming detection
- Tamper resistant
- Remote setting and testing
- Dimensions: 110х65×50 mm
- Weight: 96 g
- Certification: Grade 2, CE
*Battery backup: CR123A lithium battery (included)*
|
View Product Datasheet |
