Description

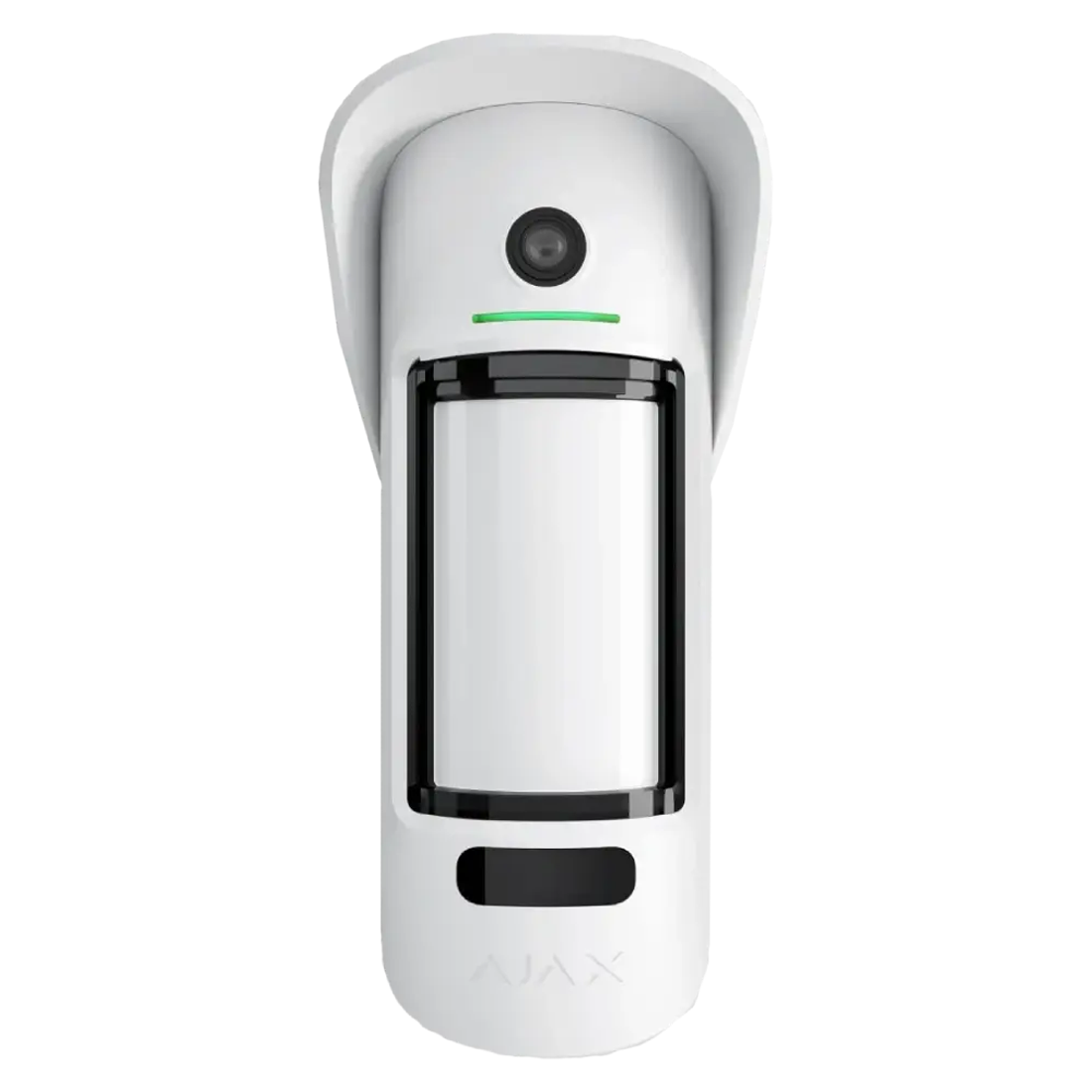

AJAX-26102 MotionCam Outdoor
** Hub 2 or Hub 2 Plus required for MotionCam / MotionCam Outdoor. **
The MotionCam Outdoor from AJAX Systems integrates specifications of their outdoor PIR, MotionProtect Outdoor, to notify users of an intrusion whilst simultaneously providing snapshots of the intrusion to the user's mobile immediately. Providing vital information to help aid an end users' actions following a notification...
Did a dog trigger the alarm? Was it a false alarm? Mum, dad or is was it a burglar? Whilst a standard PIR can SPOT an intrusion, viewing the snapshots from the mobile app will VERIFY the intrustion and may even help to identify a burglar if worse comes to the worst. Specs include:
3-15M Adjustable Detection Range (Horizontal: 90°)
Up to 3 Snapshots @ 640×352 Resolution
IP55 Outdoor Rating (Hood Pre-Installed)
Fraud, Masking, Jamming & Tamper Resistant + 80cm Pet Immunity
Up to Three Years' Battery Life
The cameras in the MotionCam range are purposefully downscaled not only to save costs but more importantly to save data - reducing time the images take to be delivered to the users' phone is critical whilst the snapshots still provide a clear enough picture to identify key elements of the scene. See our own sample images for quality reference.
Features:
- Electro-optical combined radio channel security detector
- Wireless
- Operates with Hub2 and Hub2+ only
- PIR sensor
- Alarm signal delivery time: 0.15 s
- Photo verification - Time to deliver a photograph with default settings: up to 9 sec
- Photo quality: up to 640 × 480
- Pictures in a series: 1-5 pcs
- Motion detection distance: Up to 12 m
- Detection angles: Horizontal-88.5°, Vertical-80°
- Sensitivity adjustable: 3 levels
- Recommended installation height 1.3 m
- Pet immunity: Weight: up to 20 kg, Height - up to 50 cm
- Battery life: up to 3 years
- Jeweller radio technology
- Communication range with central unit up to 1,700 m in an open space
- Two-way communication between devices
- Operating frequencies: 868.0 - 868.6 MHz
- Self-adjusting RF output power: up to 20 mW
- Block encryption based on AES algorithm
- Device polling period: 12-300 s
- Operating temperature range from -25°С to +60°С
- IP55
- Permissible humidity up to 75%
- Anti sabotage
- Jamming detection
- Tamper resistant
- Remote setting and testing
- Dimensions:206 × 108 × 93 mm
- Weight: 470 g
- Certification: Grade 2, CE
*Battery: 4x CR123A lithium battery (included)*
|
