Description

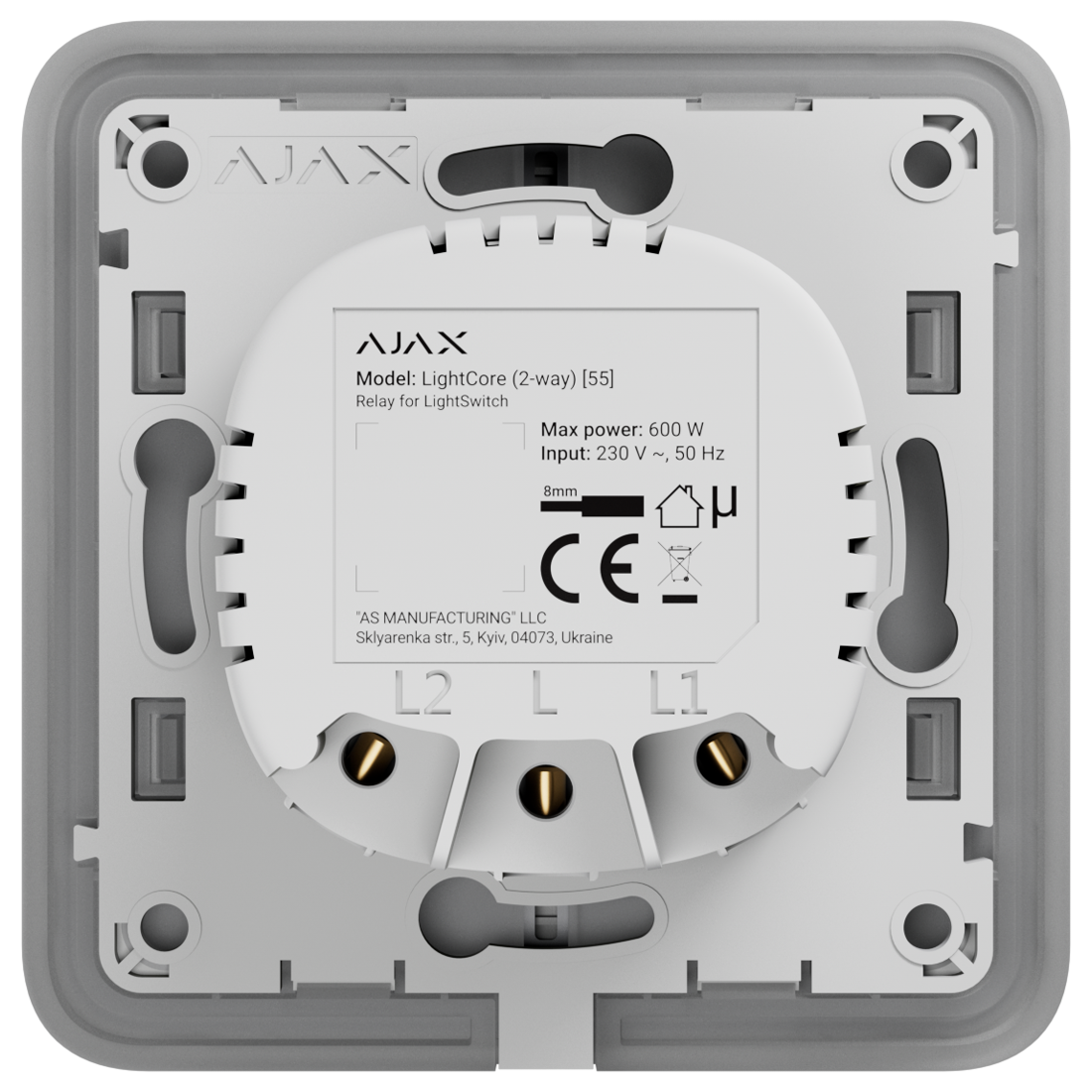

AJAX-63116 LightCore 1 Gang 2 Way Slave
The AJAX-LIGHTCORE(2-WAY) is a versatile wireless smart touch two-way light switch, designed for modern lighting control. It features a large touch-sensitive panel for effortless, contactless operation and a non-dazzling LED backlight, making it suitable for both horizontal and vertical installations.
Features:
- Wireless radio channel 1 gang 2 way Light Core
- Operates only with Hub Plus, Hub2 & Hub2 Plus
- Maximum current protection: 13 A
- Resistive load at 230 V — up to 3 kW
- Resistive load at 110 V — up to 1.5 kW
- Electric power meter function
- Energy consumption parameter check
- Power supply: 110−230 V±10% 50/60 Hz
- Jeweller radio technology
- Communication range with central unit - up to 1,000 m in an open space
- Two-way communication between devices
- Operating frequencies - 868.0-868.6 MHz
- Operating temperature range: 0°С to +64°С
- Permissible humidity: up to 75%
- Anti-sabotage
- Jamming detection
- Protection class of body: IP20
- Remote setting and testing
- Dimensions: 76.3 × 72.3 × 29.2 mm
*Faceplate Buttons Available Separately*
