Description

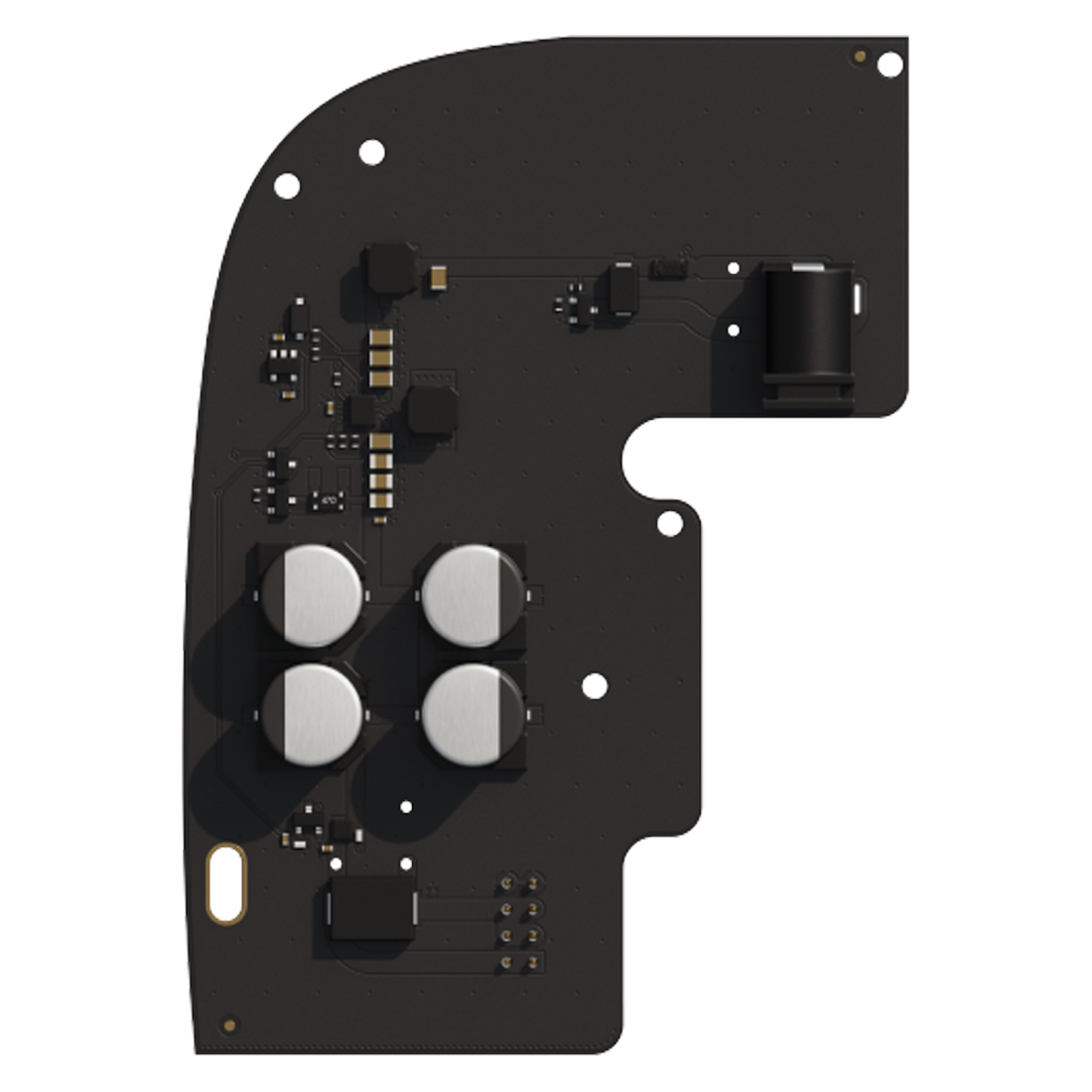

AJAX-20763 6v PSU for HUB2 and HUB2 Plus
The Ajax 6V PSU is a 6V power supply that is compatible with the Hub 2 and Hub 2 and Hub 2 Plus wireless alarm panels and is used in locations where the power supply is unstable or simply lacking. This power supply allows the Ajax Jeweller wireless alarm system to be fitted to boats, camper vans and caravans, and replaces the standard 110/230 V power supply unit in the body of the device.
Features
- Compatibility Hub 2 and Hub 2 Plus
- Input voltage 4.2-16 V DC
- Output voltage 4.8 V DC ± 5%
- Switch on voltage 4.2 V DC ± 2.5%
- Switch off voltage 3-3.4 V (depending on load)
- Max input current 2,2 А on 4,2 V; 0,5 А on 16 V
- Max output current 1,5 A
- Temperature range from -10°C to +40°С
- Humidity Up to 75%
- Connection to mains Socket: 6.5 × 2 mm
- Plug: 5.5 × 2,1 mm
- Dimensions 98 × 70 × 17 mm
- Weight 26 g
- Service life 10 years
