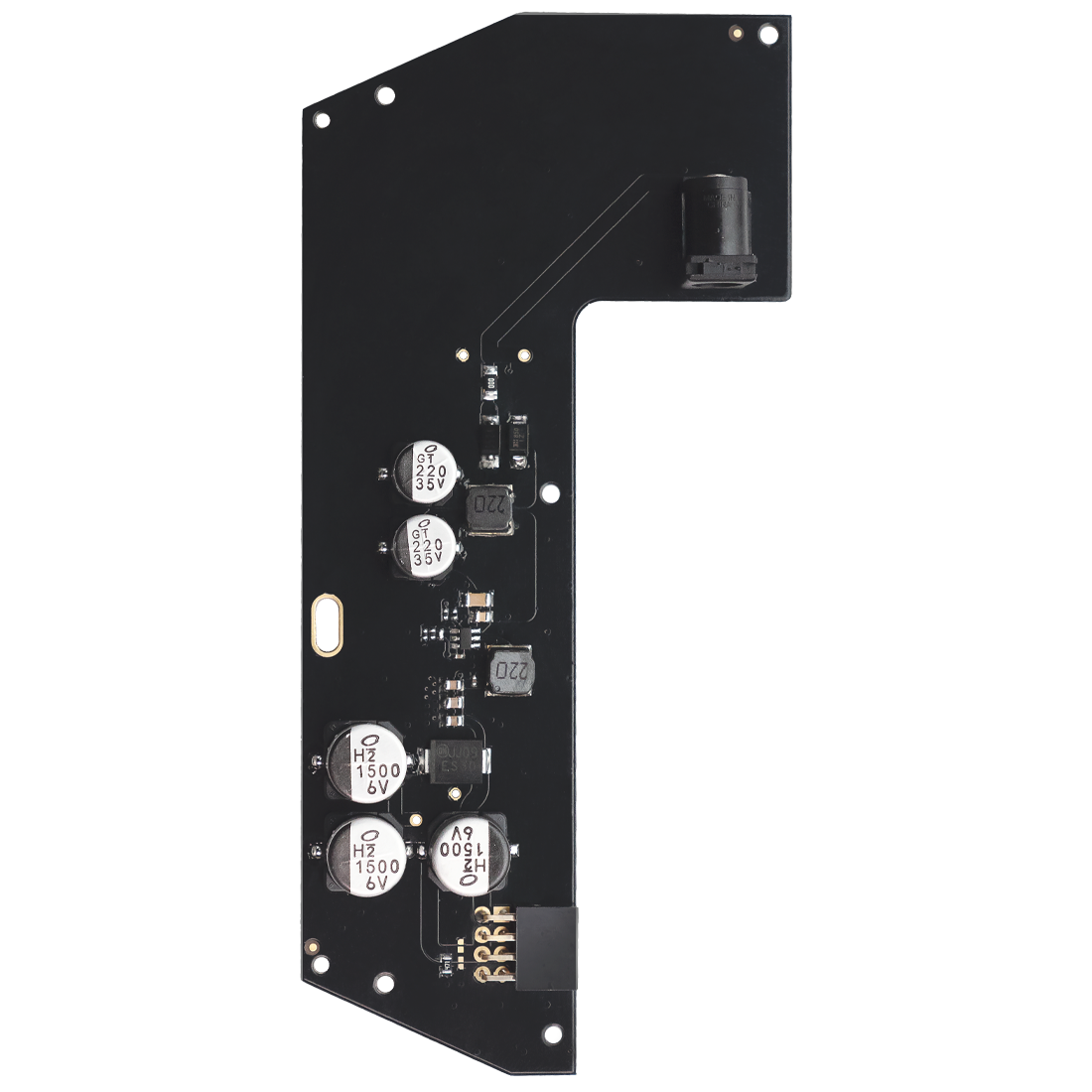

AJAX-17938 12v PSU for HUB, HUB Plus & Rex
The Ajax 12V PSU is a 12V power supply that is compatible with the Hub, Hub Plus, and ReX wireless alarm panels and is used in locations where the power supply is unstable or simply lacking. This power supply allows the Ajax Jeweller wireless alarm system to be fitted to boats, camper vans and caravans, and replaces the standard 110/230 V power supply unit in the body of the device.
Features
- Compatibility: Hub, Hub Plus, ReX
- Input voltage: 8-20 V DC
- Output voltage: 4.65 V ± 3%
- Switch-on voltage: 8 V ± 2.5%
- Switch-off voltage: 6.9-7.5 V (depending on load)
- Input current: <1 А
- Output current: 1,5 А
- Connection: Socket: 6,5 х 2 mm Plug: 5,5 х 2,1 mm (power jack)
- Dimensions: 138 х 64 х 13 mm
- Weight: 30 g
